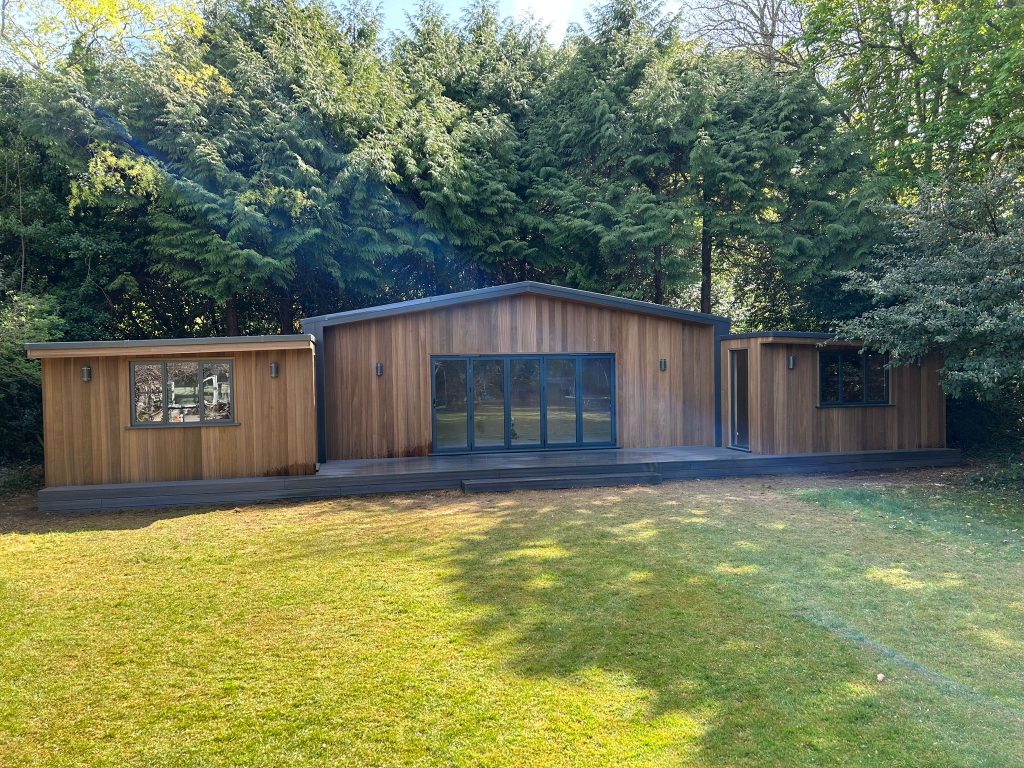

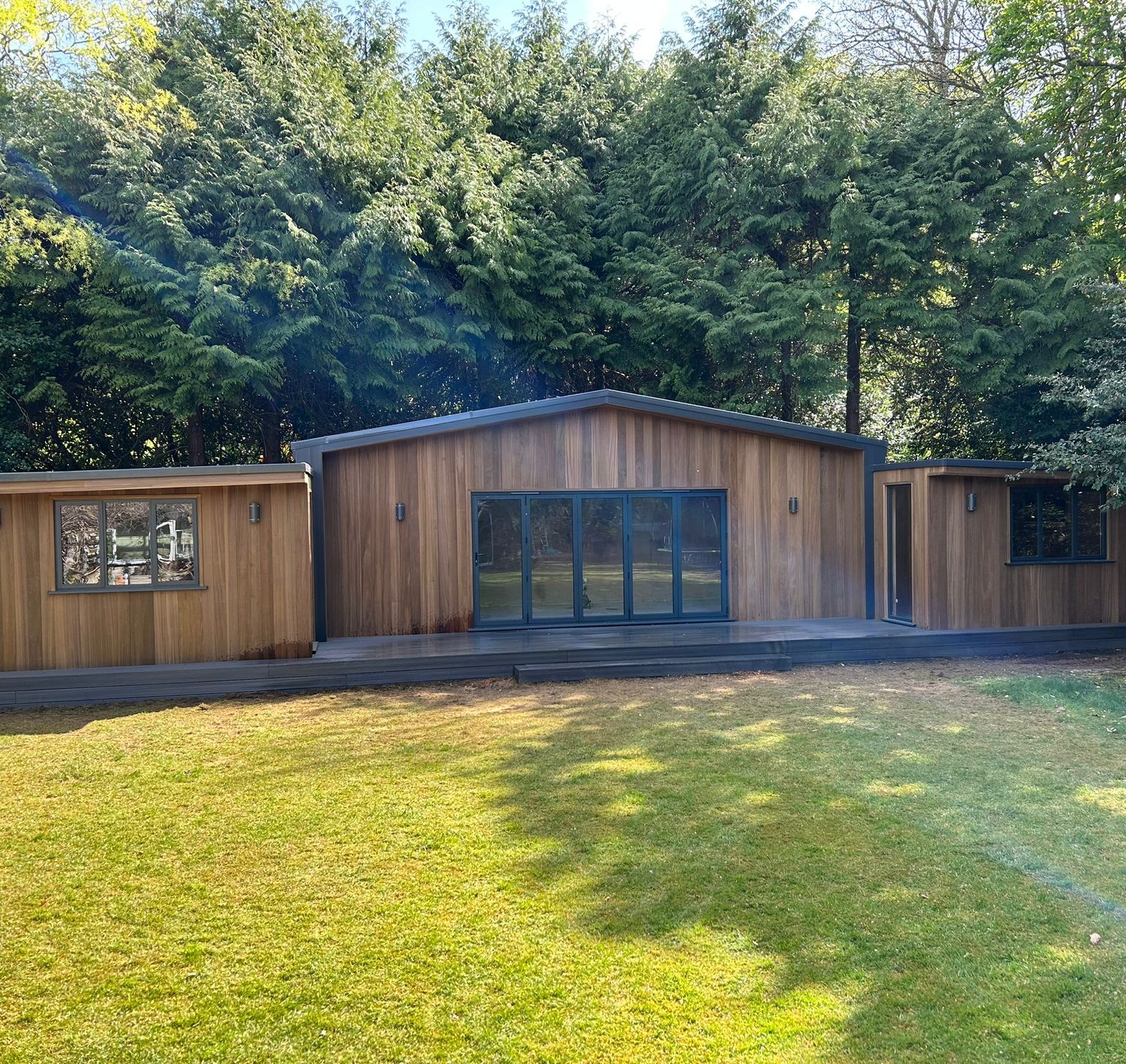

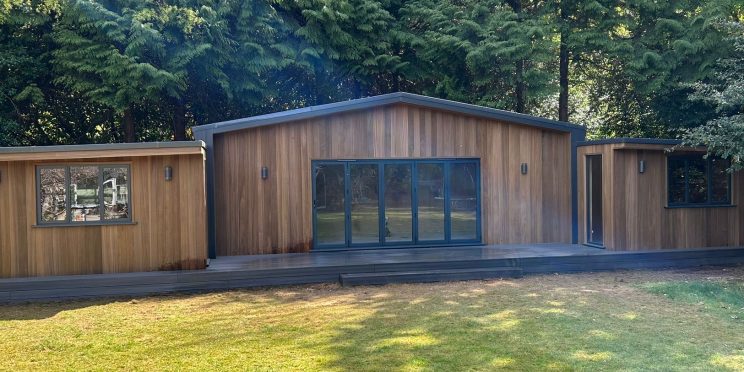

Home » Case Studies » Large-Scale Garden Room and Decking Foundation for Downland Garden RoomsLarge-Scale Garden Room and Decking Foundation for Downland Garden RoomsMarch, 2026Downland Garden RoomsSouth England We installed a nearly 100m² timber joist base with a double ring beam configuration and 90 x 76mm x 1250mm ground screws for our long-standing trade partner, Downland Garden Rooms – deploying our tracked installation machine to handle the ground conditions.This was one of the largest garden rooms and decking foundations we’ve completed for Downland Garden Rooms to date.At close to 100 square metres, this project required a single, unified foundation system capable of handling the load requirements across the full structure.With 90 ground screws to install in compacted, resistant soil, this wasn’t a job for handheld equipment. Manual installation would have been impractical at this scale and in these conditions — so we brought in our tracked installation machine to maintain speed and efficiency.The solutionWe worked with Downland Garden Rooms to design a large treated timber joist base with a double-ring beam, providing exceptional structural rigidity across the full span.Our tracked installation machine delivers consistent, high-torque driving power, ensuring every ground screw reaches the required depth, even in the most stubborn soil.Installation using our tracked machineThe machine’s tracked base also means minimal damage to the surrounding garden. Despite the scale of the installation, we were able to work efficiently across the site without churning up lawns or creating access issues.Each of the 90 ground screws was driven to the correct depth and position to support the building’s load points.Installing 90 ground screws for a garden roomThe decking section was integrated into the same foundation layout, creating a seamless transition between the garden room and the outdoor living space. With nearly 100m² to cover, the double-ring beam timber base ensures the joist base remains stable and level, giving Downland Garden Rooms a rock-solid platform to build on.Ground screws are immediately load-bearing, so once our team had finished, Downland Garden Rooms could crack on with the build straight away – no curing, no waiting, no weather-related delays.The resultsHere’s the near-100m² foundation in all its glory.The finished baseThis is the latest in a long line of projects we’ve completed with Downland Garden Rooms. When a trade customer keeps coming back, that tells you everything about the reliability of the product and the partnership.Downland Garden Rooms knows that when they bring us a project, we’ll deliver. Whether it’s a straightforward single-room base or a 90-screw, tracked-machine installation in difficult ground, the result is the same: a level foundation completed on schedule and ready for them to build on.
