Fast & Secure Fencing Foundations with Ground Screws

Installing a fence usually means spending your weekend digging post holes and wrestling with bags of concrete.

You might know the drill already – mark out your posts, dig holes, mix concrete, then prop everything up while you wait for it to cure. It’s messy, and if you don’t get the results you need right off the bat, re-work is challenging and frustrating.

Ground screws change this dynamic. They create rock-solid anchor points for any type of fencing. Garden panels, commercial barriers, temporary crowd control – they all work brilliantly on ground screw foundations. The best bit: no digging and no concrete curing time.

Let’s dig deeper and see why ground screws found a natural home in fencing applications.

Why Concrete Fence Posts Create So Many Problems

Fence post installation often creates more complications than necessary. Do any of these sound familiar?

• Weekend-long digging projects that leave you with piles of soil to dispose of
• Weather delays that stop or even undo your work
• Rot problems where timber isn’t properly seated in the concrete
• Wind damage when posts snap at concrete level or work loose in their footings
• Permanent installation – once concrete’s in, that fence isn’t moving

The bigger the fence project, the more complicated the foundations become. Commercial fencing jobs, particularly, often create outsized foundational problems when all you want to do is erect a fence.

How Ground Screws Work With Different Fencing Types Instead

Ground screws are driven to the required depth to reach stable soil, creating individual anchor points that provide excellent holding power for fence posts. They’re used for a huge range of projects across the commercial and DIY spectrum, and perform exceptionally well as fencing foundations.

Here’s what ground screws can offer your fencing project:

• No excavation required: Screws displace the soil, meaning they don’t disturb drainage channels and pose less risk of striking buried services like water pipes or power cables.
• Immediate build readiness: Ground screws are fully load-bearing as soon as they’re installed. Posts and panels can be fixed right away instead of waiting for concrete to cure.
• High wind resistance: The helical flights compact the soil around the shaft – creating a dense zone of strength that holds firm against lateral wind forces. This makes them ideal for taller fencing, privacy screens, and exposed boundary lines.
• Protection for roots and sensitive areas: Minimal disturbance makes screws suitable for tree-lined plots, landscaped gardens, and sites covered by Tree Preservation Orders (TPOs) where digging would cause damage or be restricted.
• Flexibility for future changes: Unlike concrete, screws don’t lock you in forever – fences can be extended, repositioned, or completely removed without leaving broken bases or scarring the site.

Ground screws give you the stability of traditional foundations and the adaptability concrete can’t match. A system that is both strong enough for long-term use and versatile during and after installation.

Different Types of Fencing Applications

Ground screws work brilliantly across all sorts of fencing jobs. Here’s where we’ve seen them excel time after time:

1. Garden and Residential Fencing Projects

Garden fencing is bread and butter for ground screws. Whether you’re installing privacy panels, picket fencing, or any other kind of fence, ground screws deliver clean installation that you can handle DIY.

You can position fence posts precisely where they need to go, avoiding any established plants, buried services, and landscape features that wouldn’t be compatible with fence posts set in concrete.

2. Commercial and Security Fencing Requirements

Commercial fencing projects often run on tight timescales, with limited site access and high security expectations. Ground screws meet these pressures head-on while delivering structural reliability for heavy-duty fencing.

On-site time is minimised and any impact to sensitive areas is dramatically reduced versus concrete. Because there’s no need for concrete mixers, spoil skips, or curing time, the installation process is far less disruptive to day-to-day operations.

3. Temporary and Event Fencing Solutions

Temporary and event fencing face their own challenges. Construction sites, festivals, and crowd control zones require foundations that can be installed quickly, remain stable for the duration needed, and then removed without leaving any scars. Concrete simply doesn’t fit that brief.

Ground screws are ready to use immediately, and can be removed completely once the job is done, leaving the site exactly as it was. That makes them ideal for event barriers, short-term security lines, or temporary access points.

Our Fence-Lok system goes a step further. It removes the need for kentledge blocks – heavy, awkward lumps that create manual handling risks – and replaces them with a safer, cleaner alternative.

4. Challenging Site Conditions

Ground screws specifically suit sloped ground, TPOs, and locations with restricted access.

On sloped sites, each screw can be driven to the desired depth to reach stable ground, while the fence posts above maintain consistent alignment. You can position them around tree roots to avoid cutting into them.

In restricted access areas, ground screws and brackets can be carried by light vehicle or hand, eliminating the need for heavy plant access that might damage the surroundings.

Wind Load Considerations for Fencing

Fencing always has to contend with wind, and the pressure on posts increases quickly when the weather worsens. A good foundation needs to resist wind forces reliably for years.

Ground screws achieve this through their helical design, which compacts the surrounding soil as they’re installed. That compaction creates a zone of resistance in every direction, helping the fence stand firm in challenging conditions.

Moreover, unlike concrete posts that can crack or loosen over time, steel screws maintain their grip and have enough resilience to absorb occasional shock loads without failure.

For sites in particularly windy areas, greater depth or larger-diameter screws add even more holding strength. We can provide specific load-testing when wind is a concern.

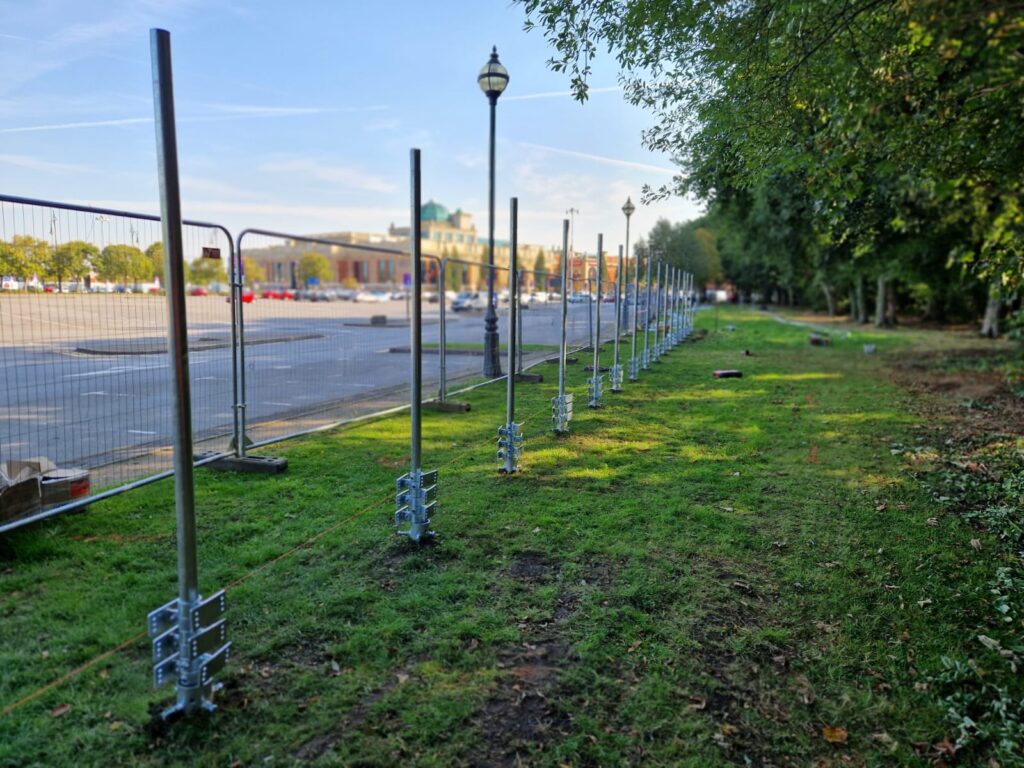

Temporary Fencing and the Fence-Lok System

Most temporary fencing still relies on kentledge blocks – heavy, awkward units that are a manual handling hazard and frequently struggle to meet structural checks.

Our Fence-Lok system removes those problems by providing a certified foundation solution that meets Temporary Works design requirements.

Instead of relying on loose weights, Fence-Lok delivers tested structural performance with minimal manual handling. Screws install quickly, hold securely, and can be removed without a trace once the job is complete.

For construction sites, events, and temporary access control, Fence-Lok offers a safer, faster, and more reliable alternative to traditional block-based systems.

Five Essential Installation Tips for Fencing Ground Screws

Getting your fencing ground screws installed properly makes all the difference between a fence that stands strong for decades and one that causes ongoing problems. Here are our top tips for getting it right first time:

1. Mark Out Your Fence Line Accurately Before Starting

Use string lines and measuring tape to establish your exact fence position before installing any screws.

Check diagonal measurements on corners to ensure everything’s square. Mark each post position clearly – you’ll save time and avoid costly mistakes if everything’s properly planned from the start.

2. Check for Underground Services First

Before installing any ground screws, the same as if you’re digging holes for concrete, use a CAT scanner or check house plans to identify buried cables, pipes, and other services.

Striking a gas pipe or electrical cable creates dangerous situations and expensive repairs. This step is absolutely essential for safe installation.

3. Install Corner Posts First, Then Work Along Each Section

Start with your corner and gate posts, ensuring they’re perfectly vertical and positioned correctly.

These become your reference points for the rest of the fence line. Use a string line between corners to keep intermediate posts aligned, and check levels regularly as you work along each section.

4. Use the Right Bracket for Your Fence Type

Different fence styles need different mounting solutions. U-brackets work brilliantly for traditional fence posts, while panel brackets suit close-board fencing.

Make sure your brackets match both the ground screw diameter and your specific fencing requirements – the wrong bracket creates weak points that can fail under wind load.

5. Drive Screws to Consistent Depths for Level Fencing

Aim for consistent installation depths across your fence line, especially on sloped ground.

Ground screws that are driven too shallow or unevenly create alignment problems when you come to fit your panels. Use a long spirit level to check alignment as you go, and adjust depths as needed to maintain level fence lines.

Ground Screws Transform Fencing Projects

Ground screws offer excellent foundations for all types of fencing, combining structural performance with rapid installation and environmental responsibility.

Their flexibility to work in challenging conditions, sensitive environments, and tight timescales opens up new possibilities and simplifies installation. Not to mention the fence will be perfectly positioned and ready to withstand years of strong winds.

Ready to start your fencing project? Use our ground screw calculator to work out exactly what you need, explore our complete range of screws and brackets for fencing applications, or contact our team for technical guidance on your specific fencing requirements.
