Quick & Simple
Easy to install yourself in a matter of minutes, enabling you to get your project out of the ground straight away without any waiting, any time of the year.
Less mess, less cost
A quick and clean alternative to messy concrete, no digging, no waste, no costly skips. Save money on the total cost of installing foundations.
Designed to last
Our ground screws are fully galvanised to protect against rusting. For added peace of mind, they are CE certified with our 20-year product guarantee and are BS EN 1461:2009 compliant.
Immediately load bearable
Suitable for a wide range of structures, our ground screws are immediately load bearing, so as soon as they are installed you can start building.
Permanent or temporary structures
Suitable for permanent or temporary structures and easily removable with no lasting pollutants left behind
Environmentally friendly
Reduced CO2 from pouring concrete. Helps protect habitats and prevent damage to tree root systems
No Heavy Equipment
Purchase your hand ratchet tool for quick and easy installation due to no heavy equipment required
Lightweight & Compact
Using ground screws eliminates any access issues - Our ground screws, bracket systems and tools can all be carried by hand.
Reduced Disruption
The DIY approach minimises disruptions to your property, as it often involves less noise, debris, and disturbance compared to traditional foundation construction.

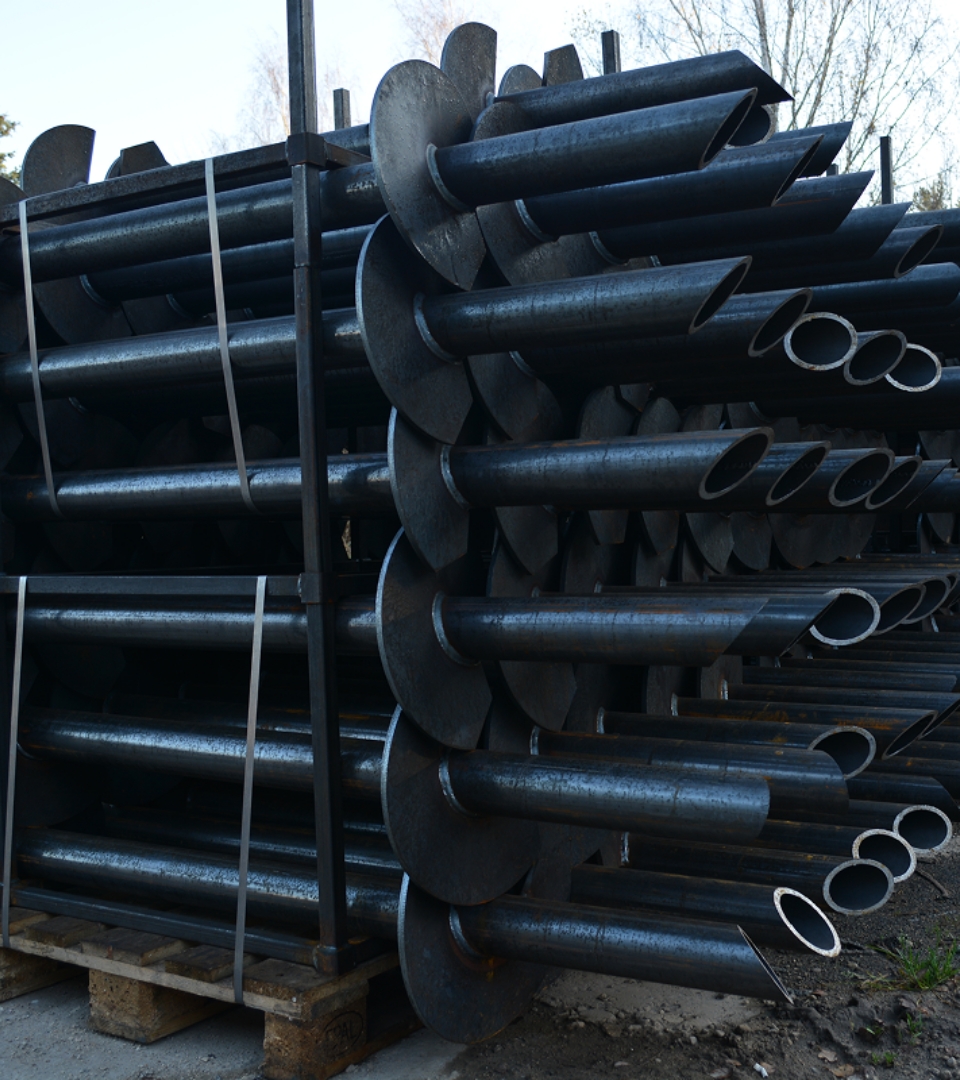

140R Helical Screw Pile
140R Helical Screw Pile
Price: POA
To purchase our Helical Screw Piles, please contact us so we can provide the correct pile design and specification suited to your project.
Enquire nowDescription
Introducing the 140R — the flagship heavy-duty screw pile at the top of our range, purpose-built for large-scale foundation and infrastructure projects that demand maximum load capacity and depth. With its oversized helical flights and reinforced shaft diameter, the 140R screw pile delivers superior bearing capacity in challenging soil conditions, making it the go-to helical pile solution for major structural applications.
Each 140R pile is driven using our excavator-mounted installation system, compatible with a broad range of excavator sizes, and available with an optional gimbal mount for sites with restricted access or limited headroom clearance.
Real-time torque monitoring during installation gives engineers and installers instant, on-site verification of pile capacity — removing the guesswork from deep foundation installation and ensuring compliance with project specifications. As the largest screw pile in our lineup, the 140R is engineered for demanding applications including large-scale BESS foundations, bridge substructures, transmission towers, heavy gantry systems, and major commercial and industrial developments. Contact us today for a quote on your next heavy-duty foundation project.
Pile Section Specifications
| Size | Shaft Dia. | Shaft Wall Thickness | Section Length | Helix Qty | Helical Plate Thickness | Extension Sections | Coating Finish |
|---|---|---|---|---|---|---|---|
| 140R | 140mm | 12.5mm+ | Bespoke | Bespoke | 12.5mm+ | Bespoke | EN ISO 1461 – Hot-dip galvanising |
Pile Head Specifications
| Pile Size | Plate Size | Plate Thickness | Fixing | Coating Finish |
|---|---|---|---|---|
| 140R | Bespoke | Bespoke | Bespoke | EN ISO 1461 – Hot-dip galvanising |
Manufacturing Standards
| Standard | Covers |
|---|---|
| EN 10025 | Structural steel specification |
| EN 10210 / EN 10219 | Structural hollow sections |
| ISO 3834 | Welding quality management |
| EN ISO 1461 | Hot-dip galvanising |
| EN 1090-1 | CE/UKCA conformity declaration |
| EN 1090-2 | Execution class EXC2 or EXC3 as applicable |
Key advantages for engineers and contractors
- No vibration
- High load achieve with smaller rigs and machines
- Reliable performance in weak and variable ground conditions
- Safe and practical for use on contaminated land
- Design life of up to 120 years
- Fully certified load data for every pile installed
- Not weather-dependent – installation possible in conditions that would delay a concrete pour
- Suitable for confined and restricted-access sites
- Can be installed at a range of angles to suit design requirements
