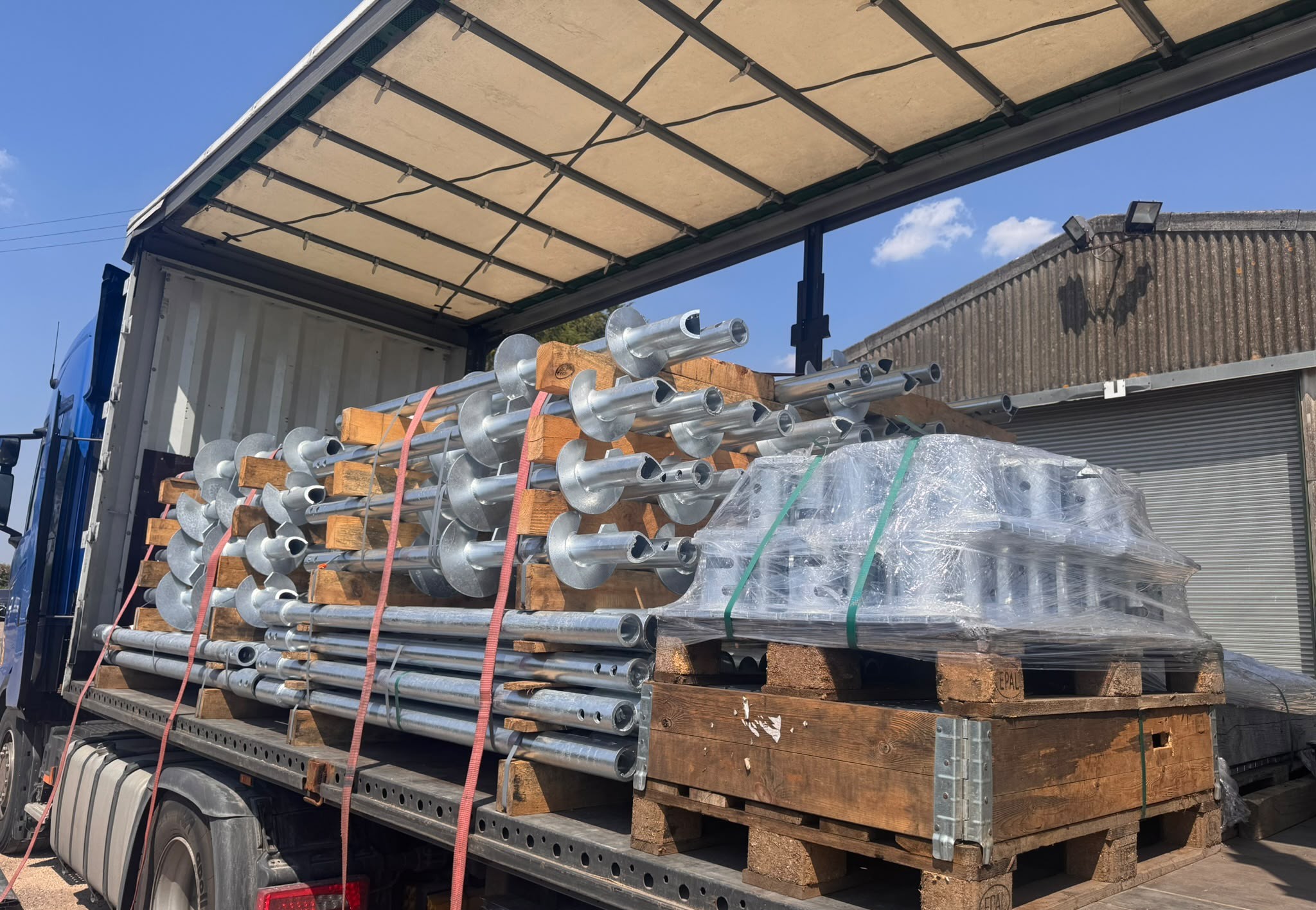

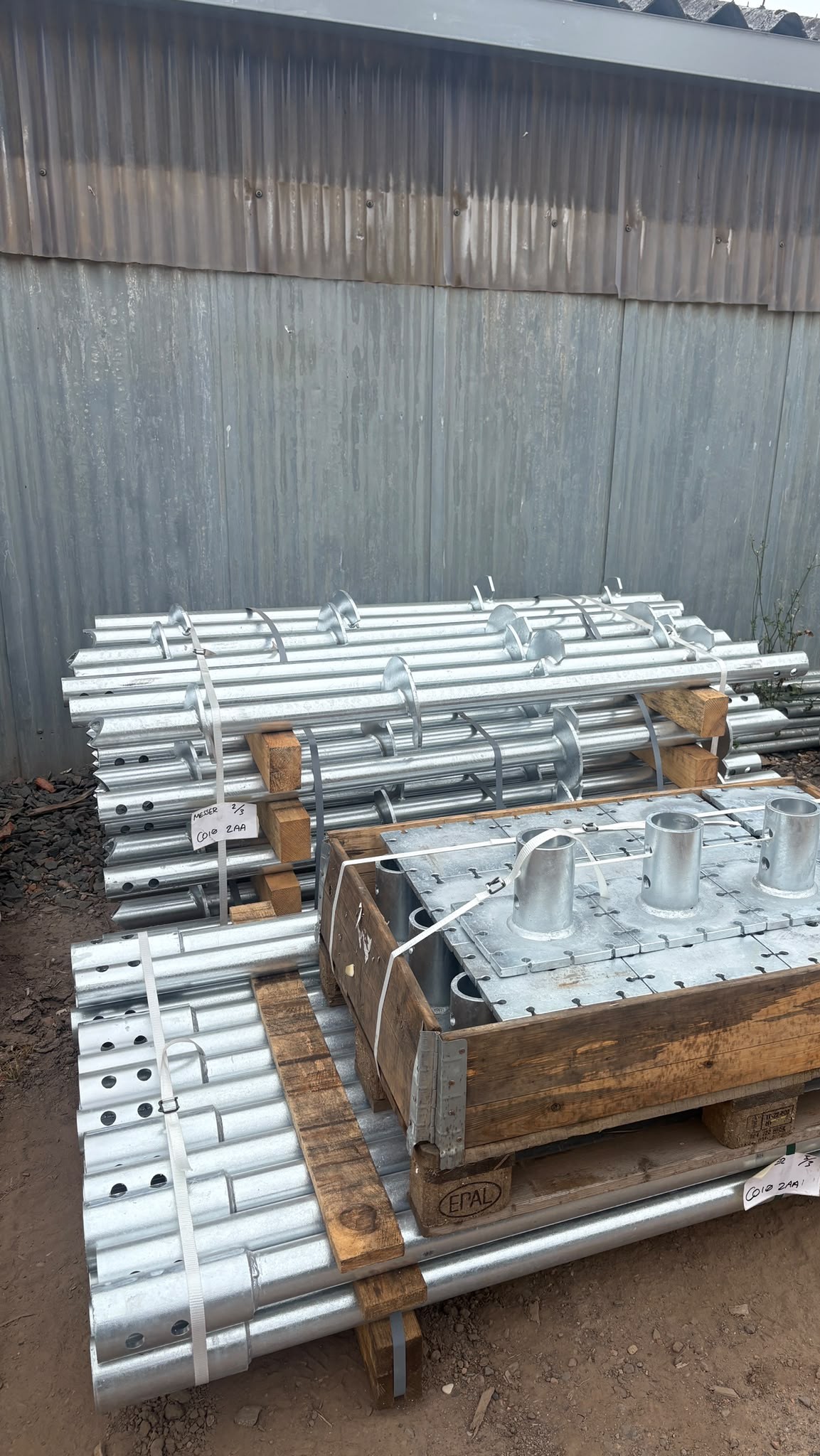

76R Helical Screw Pile
76R Helical Screw Pile
Price: POA
To purchase our Helical Screw Piles, please contact us so we can provide the correct pile design and specification suited to your project.
Enquire nowDescription

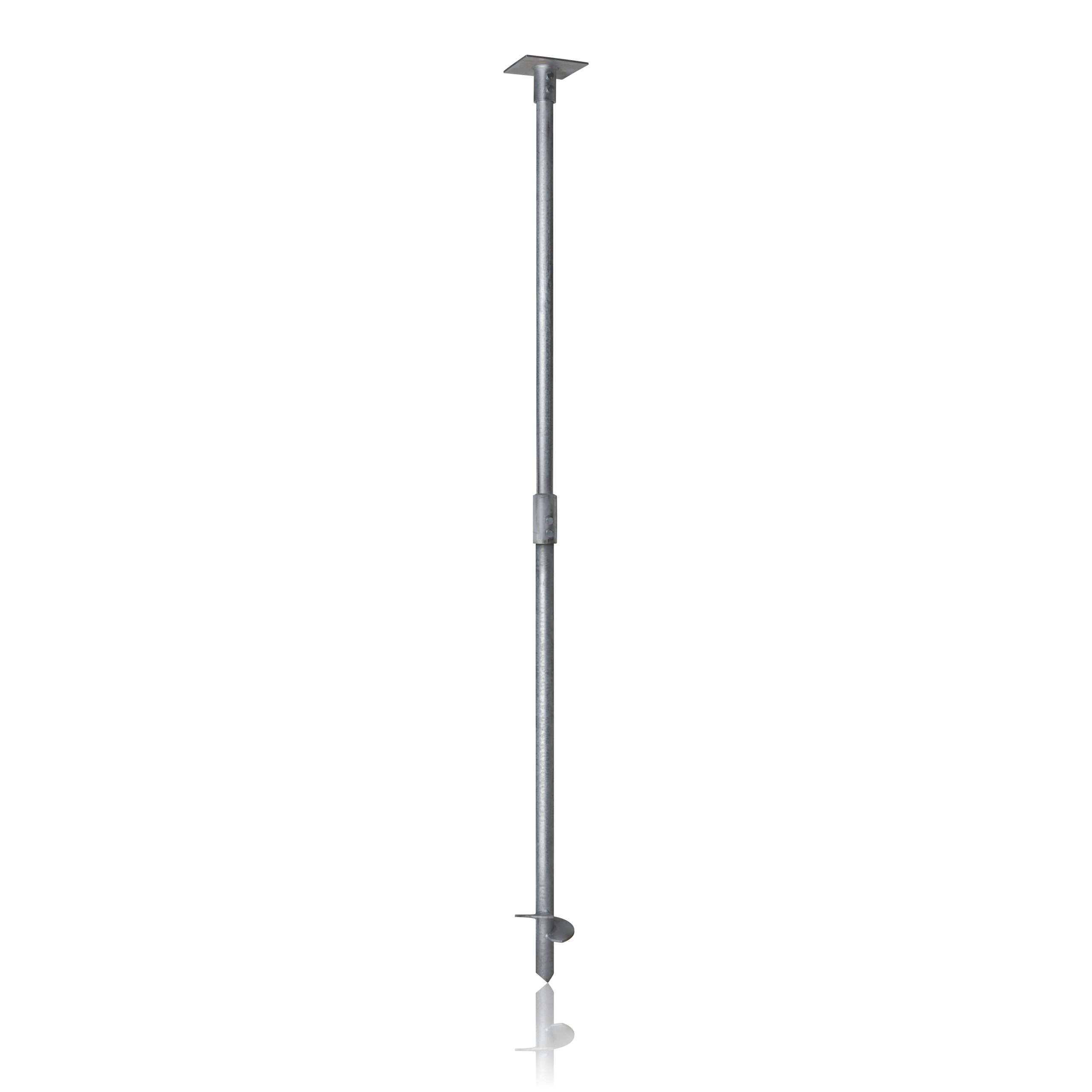

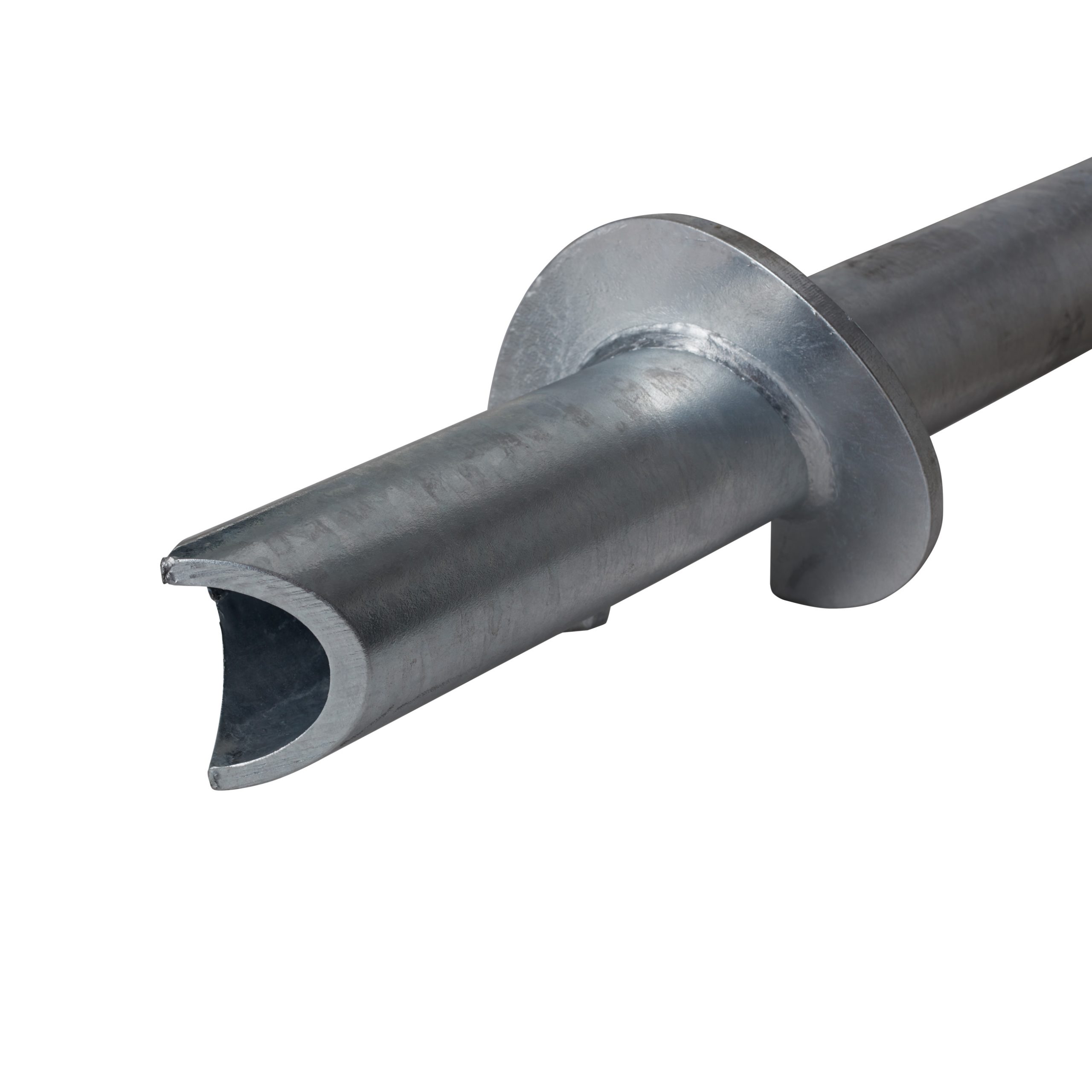

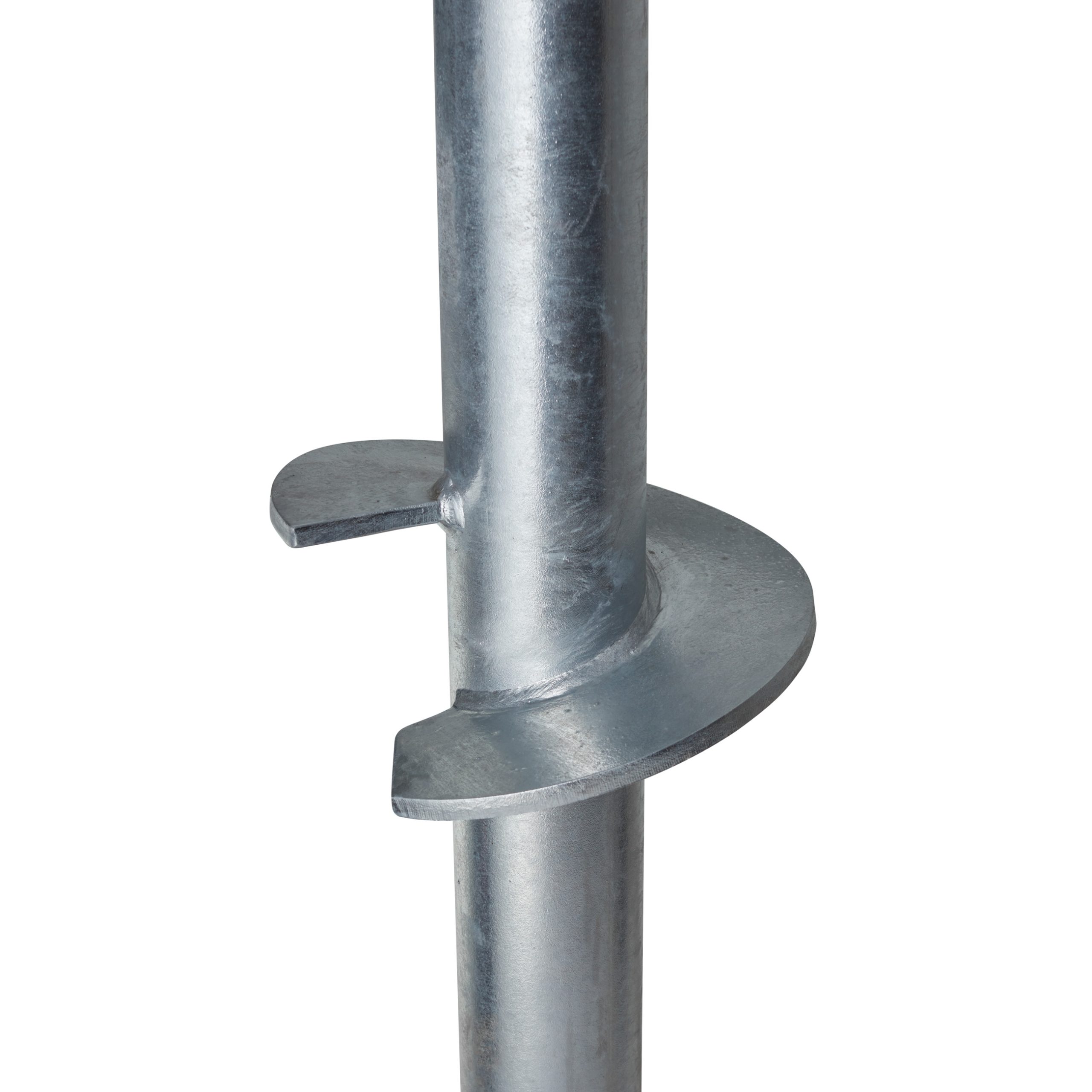

The 76R Helical Screw Pile is the entry point into our screw pile range, available in single and double helix configurations, with bespoke designs available on request. It’s ideal for garden rooms, annexes, and garages.
Installation can be carried out using a 1.5t excavator or larger, making it well-suited to tight access and confined spaces. Manufactured from durable, hot-dip galvanised steel, the 76R installs quickly with no concrete or curing time required, providing strong, reliable support with minimal ground disturbance. Easy to install, remove, or relocate, it’s a fast, sustainable alternative to traditional foundations.
Pile Section Specifications

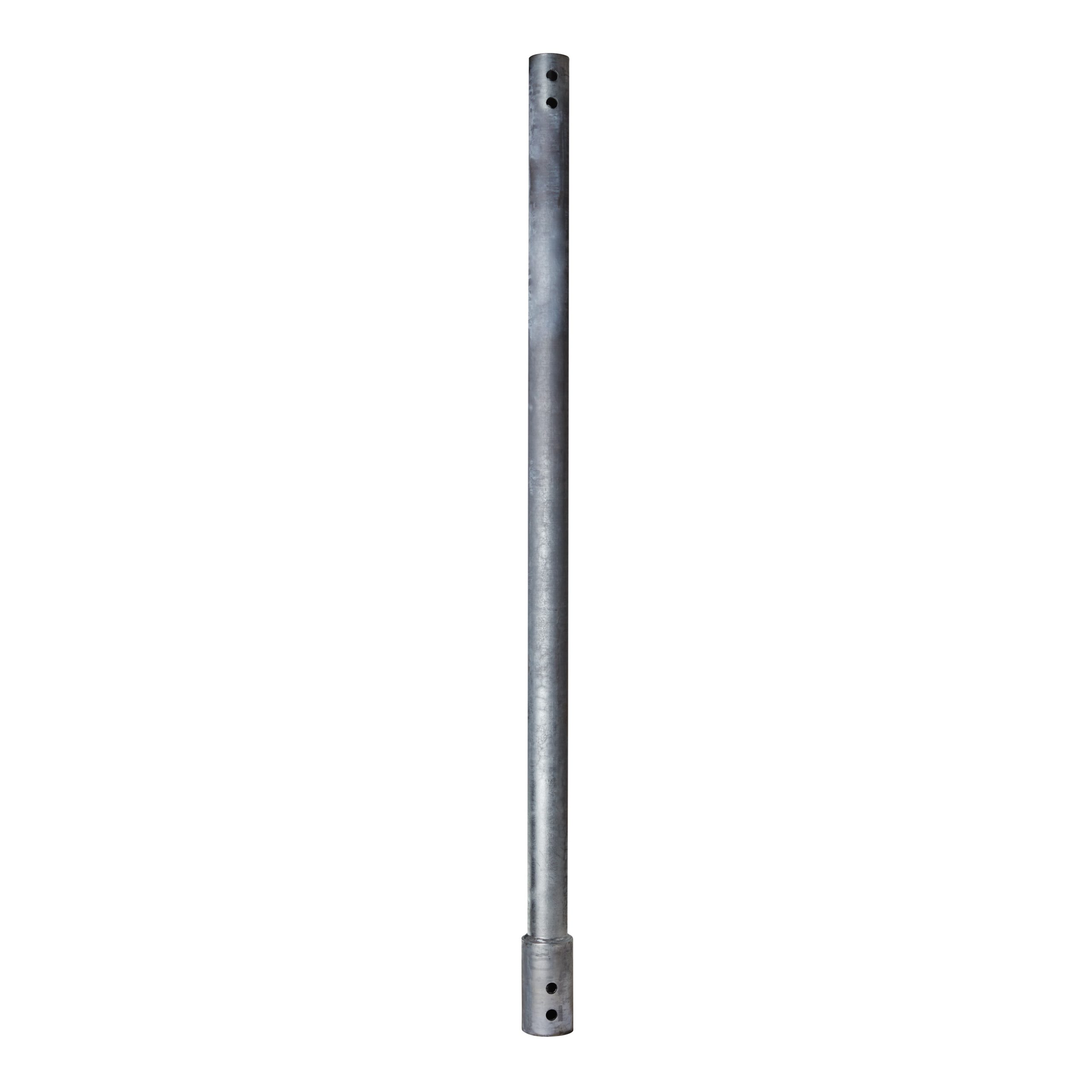

| Size | Shaft Dia. | Shaft Wall Thickness | Section Length | Helix Qty | Helical Plate Thickness | Extension Sections | Coating Finish |
|---|---|---|---|---|---|---|---|

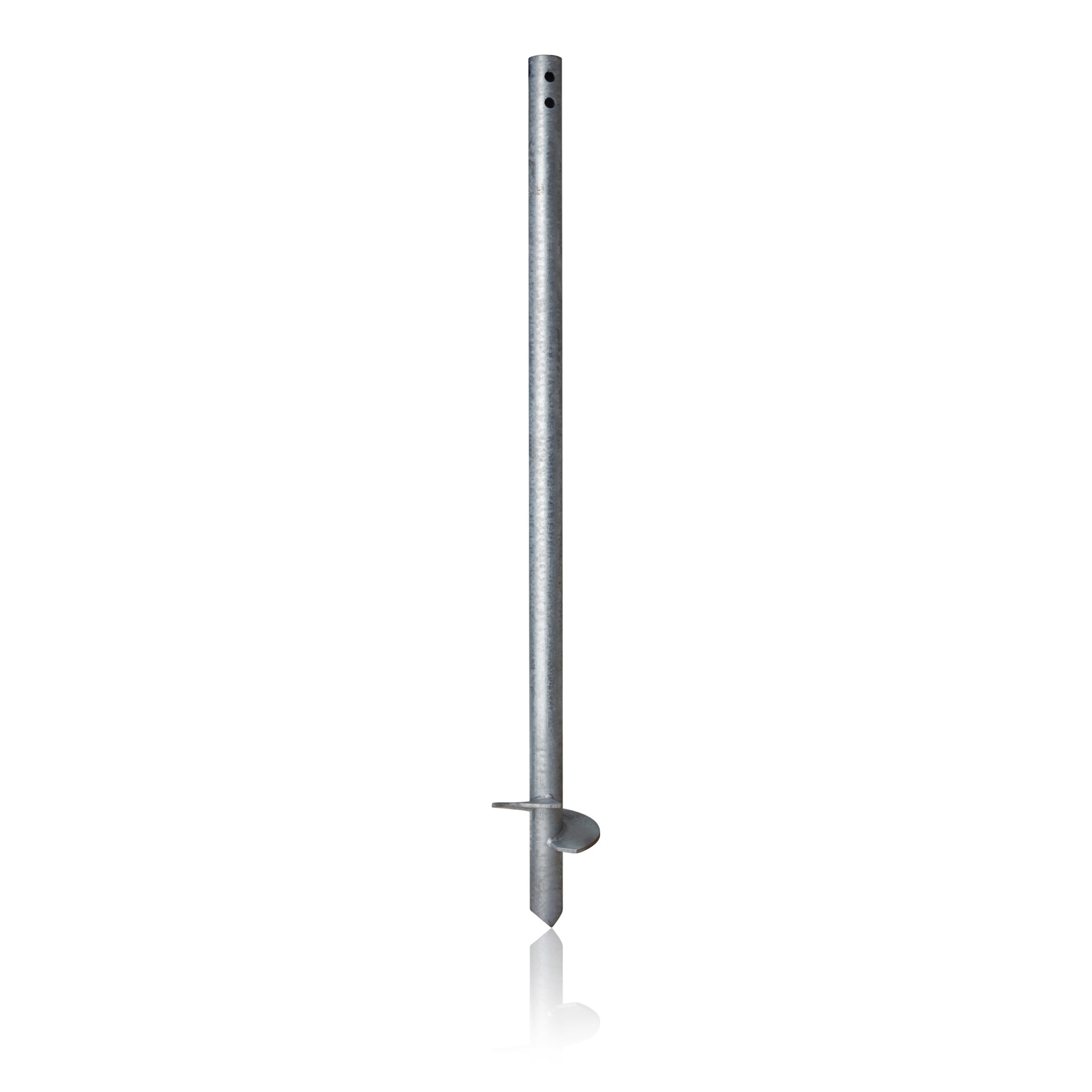

| 76R - Single Helix | 76mm | 10mm | 2000mm | Single Helix | 10mm | 10mm x 2000mm | EN ISO 1461 – Hot-dip galvanising |

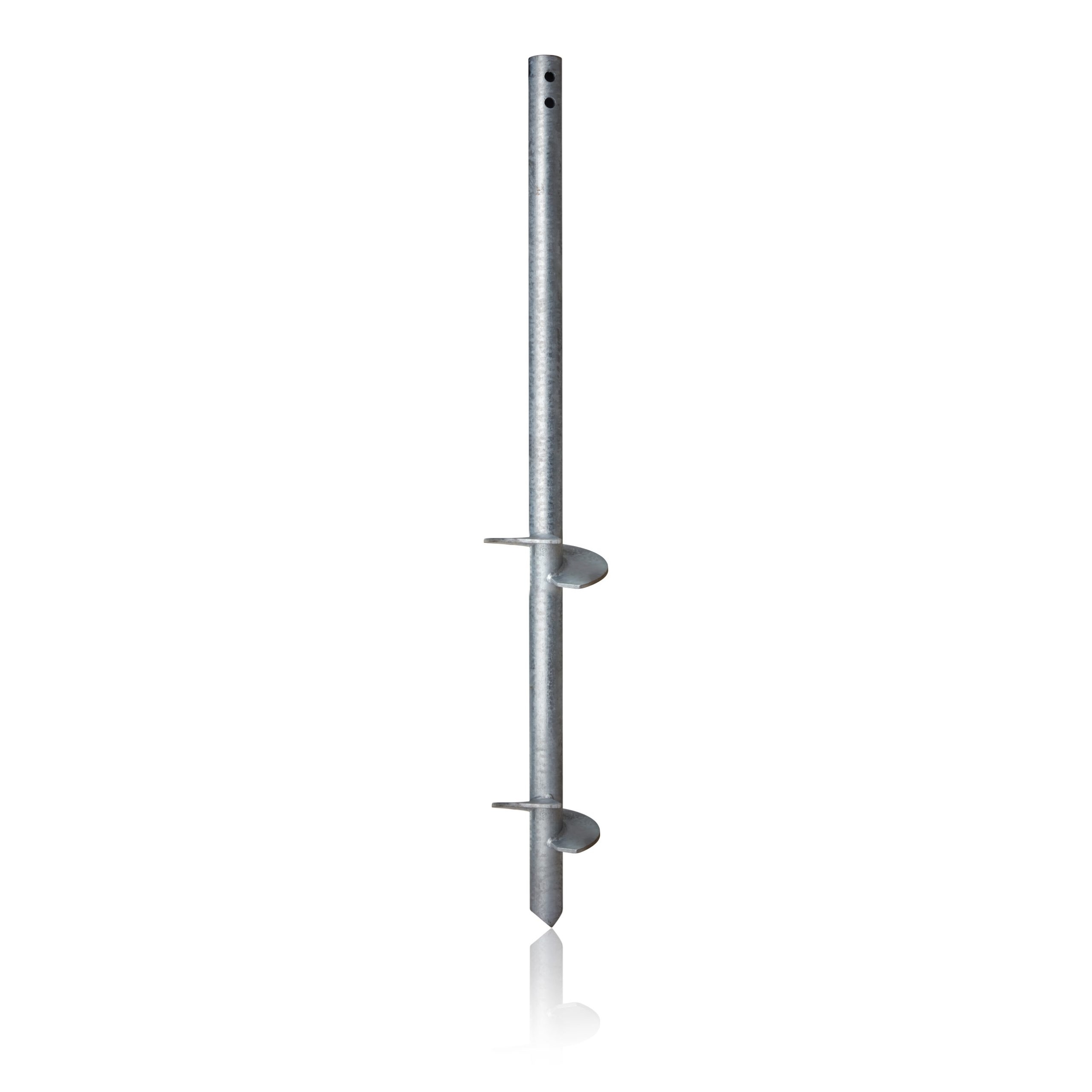

| 76R Double Helix | 76mm | 10mm | 2000mm | Double Helix | 10mm | 10mm x 2000mm | EN ISO 1461 – Hot-dip galvanising |

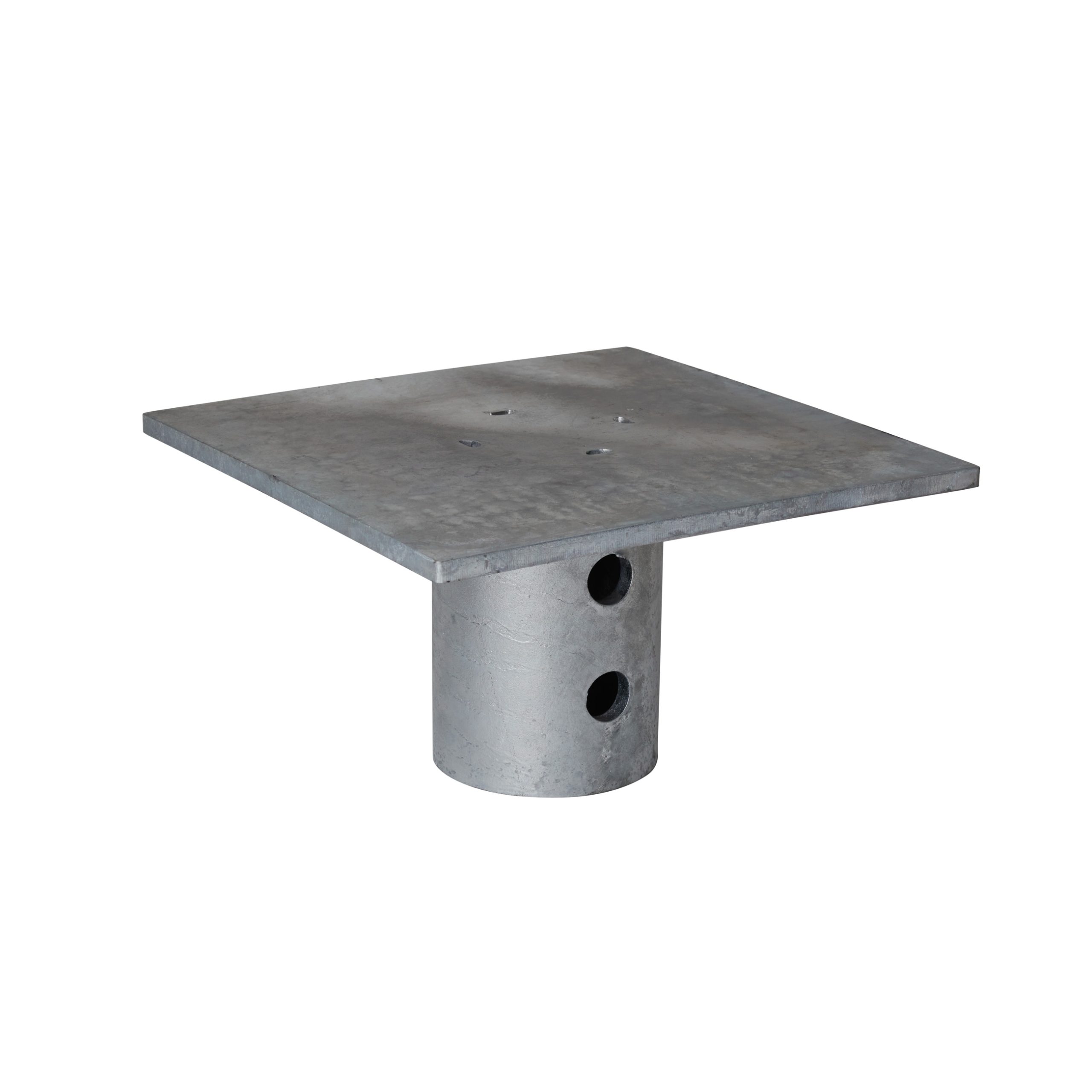

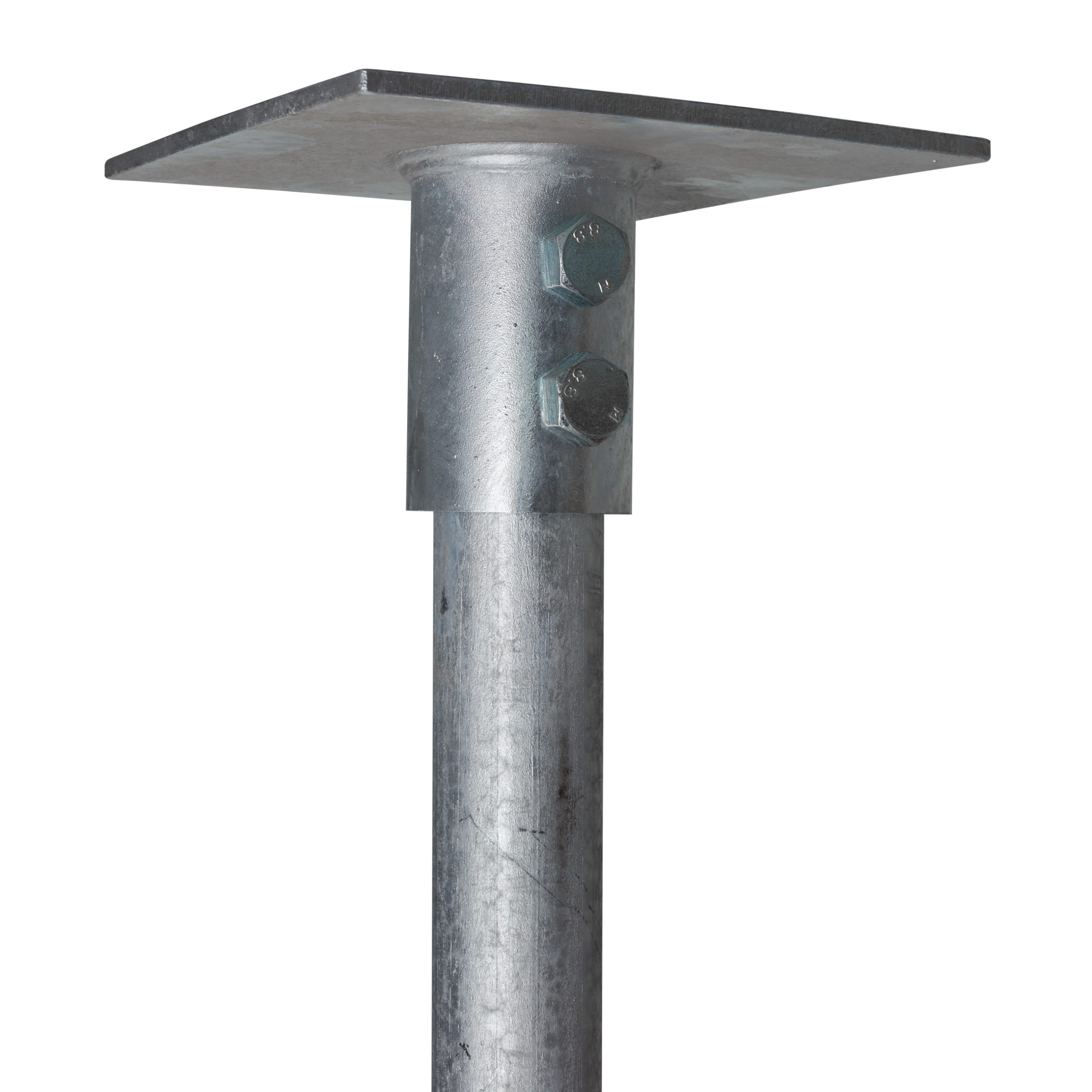

Pile Head Specifications
| Pile Size | Plate Size | Plate Thickness | Fixing | Coating Finish |
|---|---|---|---|---|
| 76R | 300mm x 300mm | 10mm | Fixed M24 Bolt | EN ISO 1461 – Hot-dip galvanising |
| 76R | 250mm | 15mm | Adjustable Slot M24 Fixing | EN ISO 1461 – Hot-dip galvanising |
Manufacturing Standards
| Standard | Covers |
|---|---|
| EN 10025 | Structural steel specification |
| EN 10210 / EN 10219 | Structural hollow sections |
| ISO 3834 | Welding quality management |
| EN ISO 1461 | Hot-dip galvanising |
| EN 1090-1 | CE/UKCA conformity declaration |
| EN 1090-2 | Execution class EXC2 or EXC3 as applicable |
Key advantages for engineers and contractors
- No vibration
- High load achieve with smaller rigs and machines
- Reliable performance in weak and variable ground conditions
- Safe and practical for use on contaminated land
- Design life of up to 120 years
- Fully certified load data for every pile installed
- Not weather-dependent – installation possible in conditions that would delay a concrete pour
- Suitable for confined and restricted-access sites
- Can be installed at a range of angles to suit design requirements
