89R Helical Screw Pile
89R Helical Screw Pile
Price: POA
To purchase our Helical Screw Piles, please contact us so we can provide the correct pile design and specification suited to your project.
Enquire nowDescription

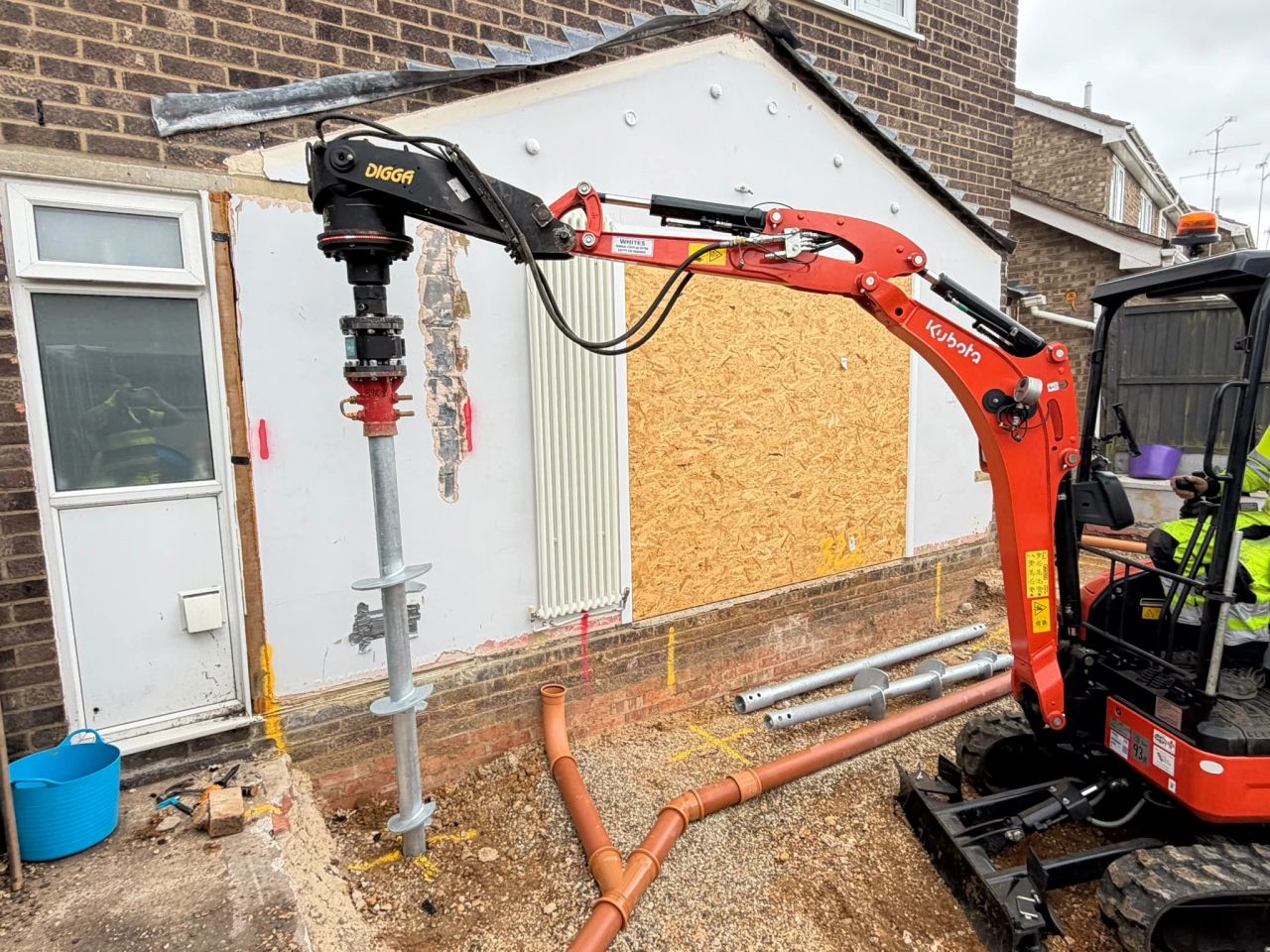

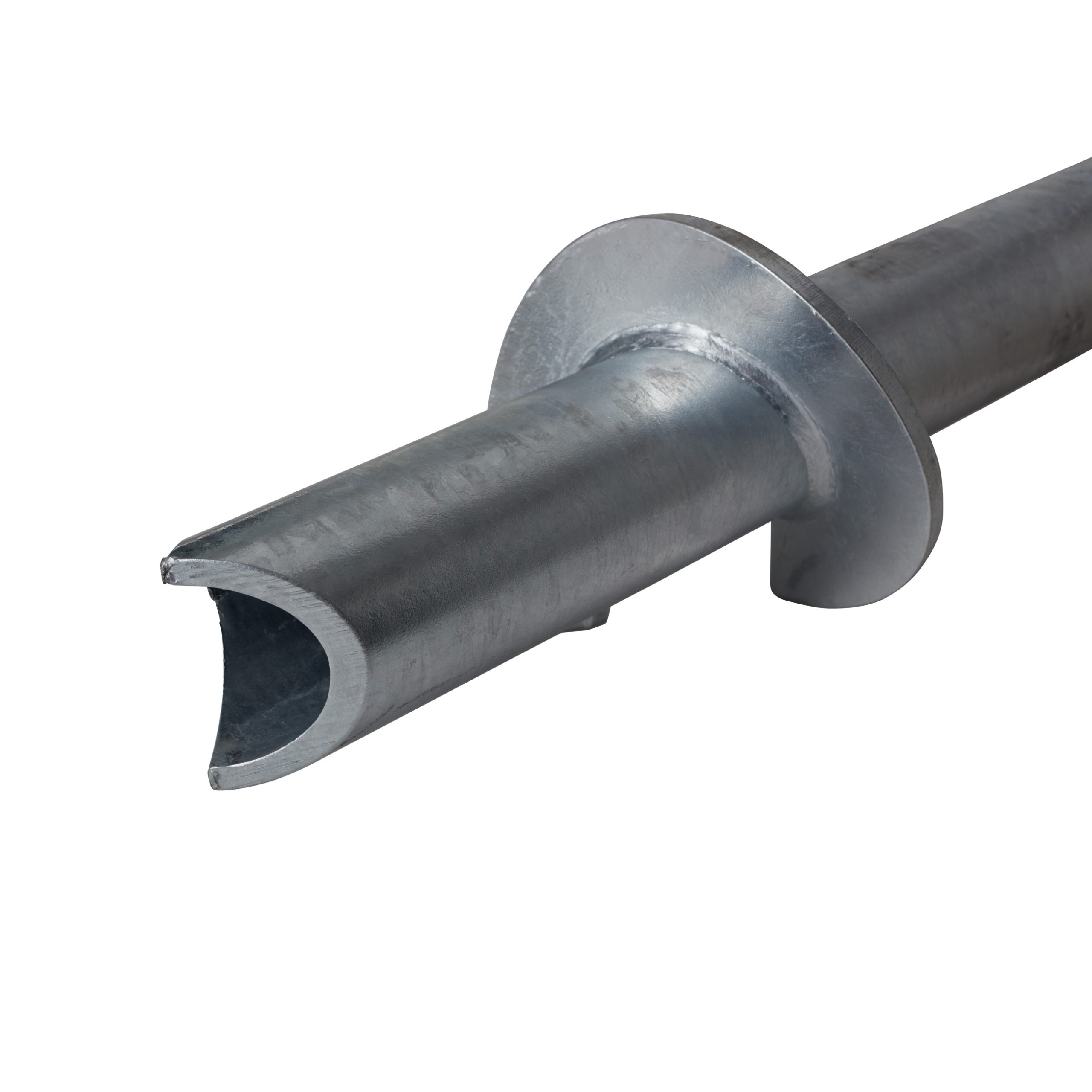

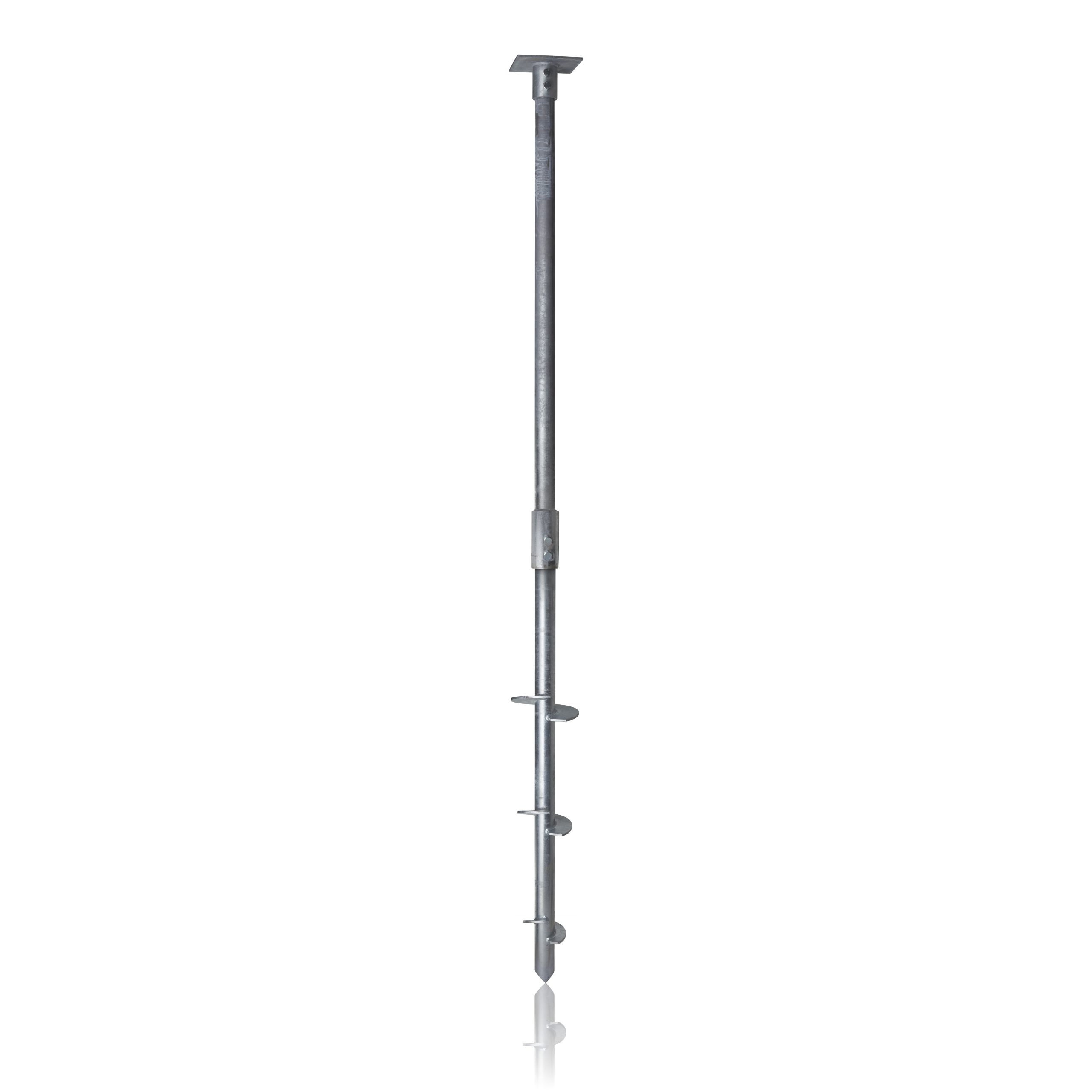

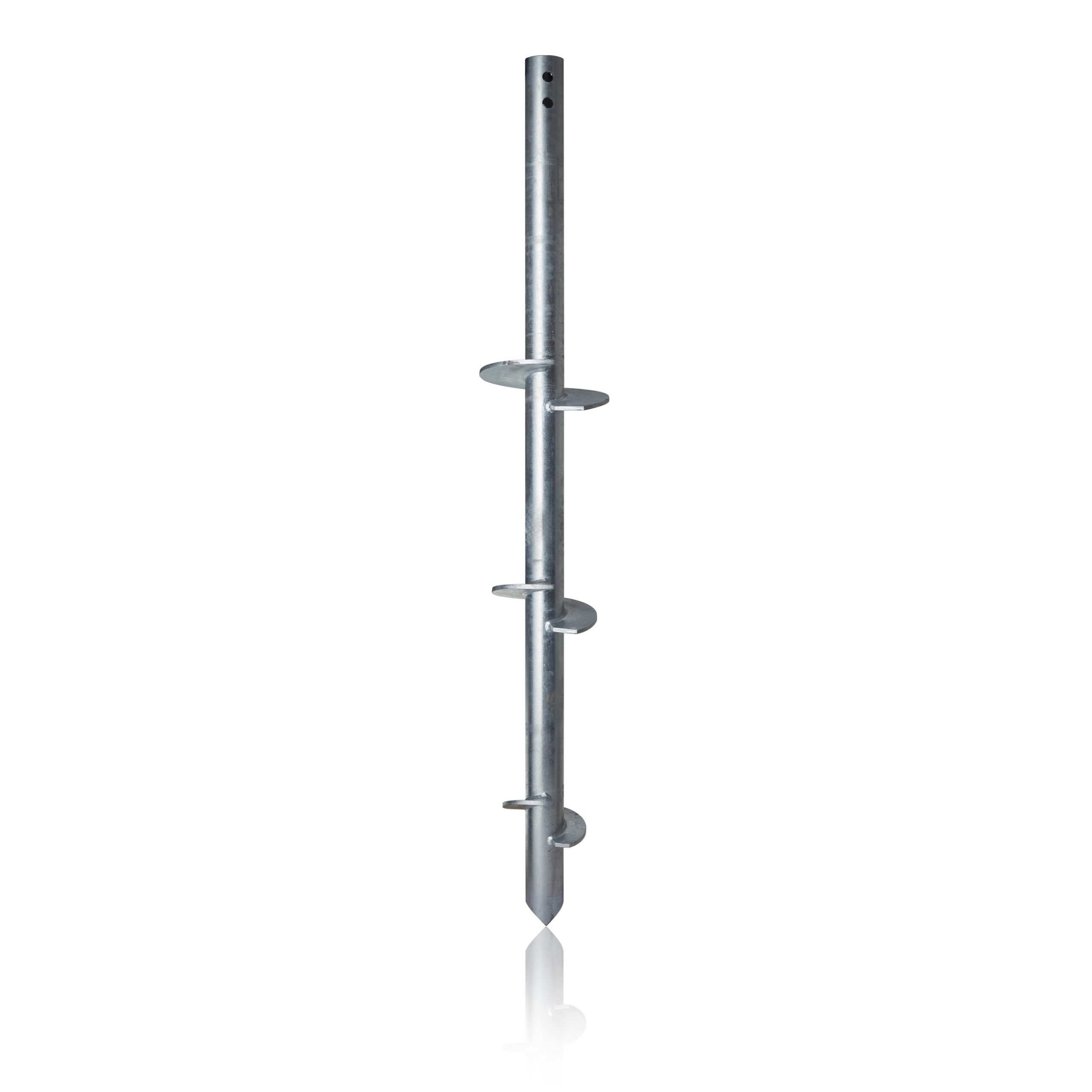

The 89R is the flagship of our screw pile range, engineered for deep embedment and the heaviest loads in the lineup. Its triple helix design delivers strong load-bearing capacity across a range of soil conditions, with multiple helix sizes available to suit the application. Installation is carried out using our excavator-mounted unit, compatible with a range of excavator sizes, with an optional gimbal mount for easier loading on sites with restricted headroom.
Real-time torque read-outs let installers calculate pile capacity on the spot, taking the guesswork out of every job. Ideal for full house foundations, modular homes, cabins, shipping container bases, and heavy-duty extensions — inquire for pricing.
Pile Section Specifications
| Size | Shaft Dia. | Shaft Wall Thickness | Section Length | Helix Qty | Helical Plate Thickness | Extension Sections | Coating Finish |
|---|---|---|---|---|---|---|---|

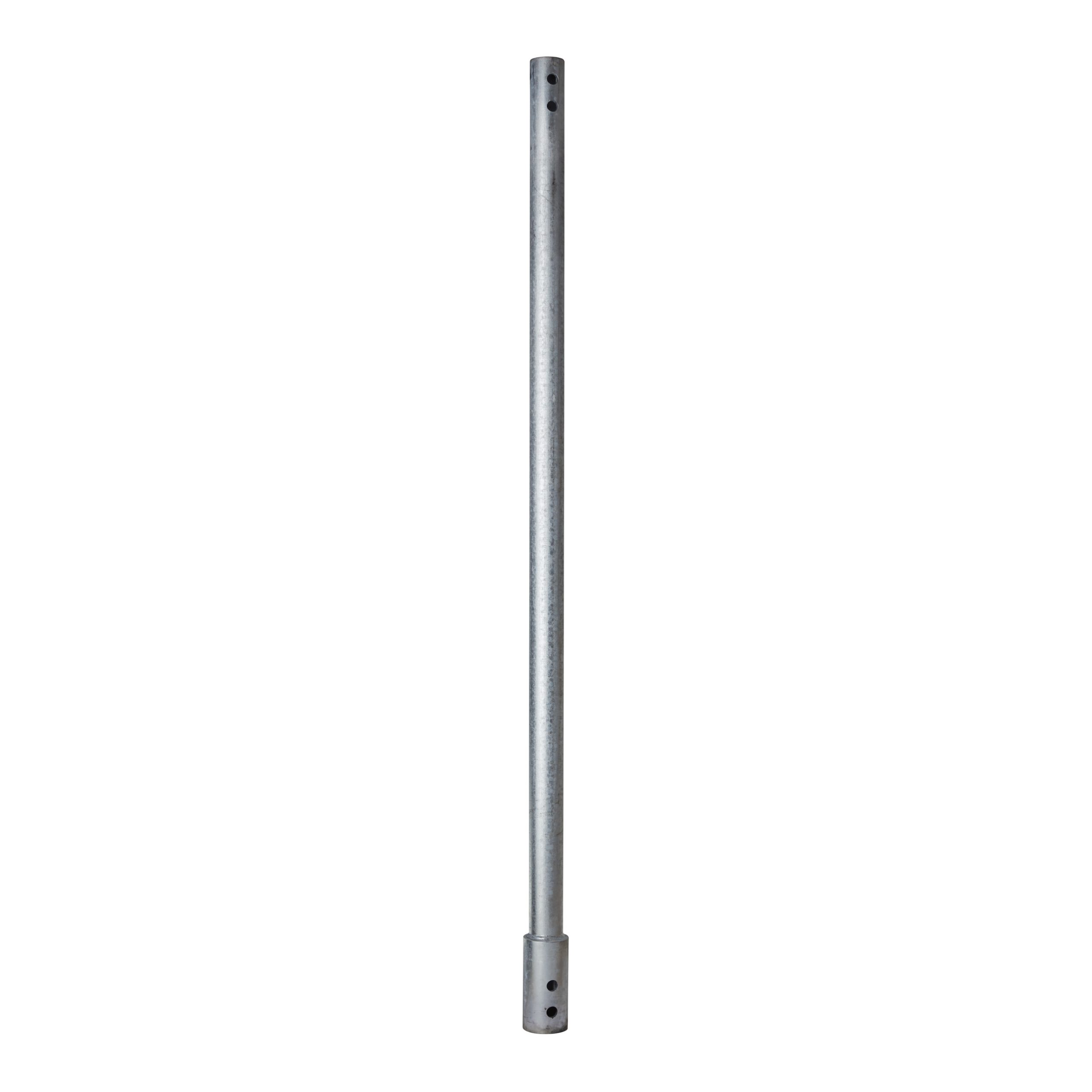

| 89R Triple Helix | 89mm | 10mm | 2000mm | Triple Helix | 10mm/12nn | 10mm x 2000mm | EN ISO 1461 – Hot-dip galvanising |

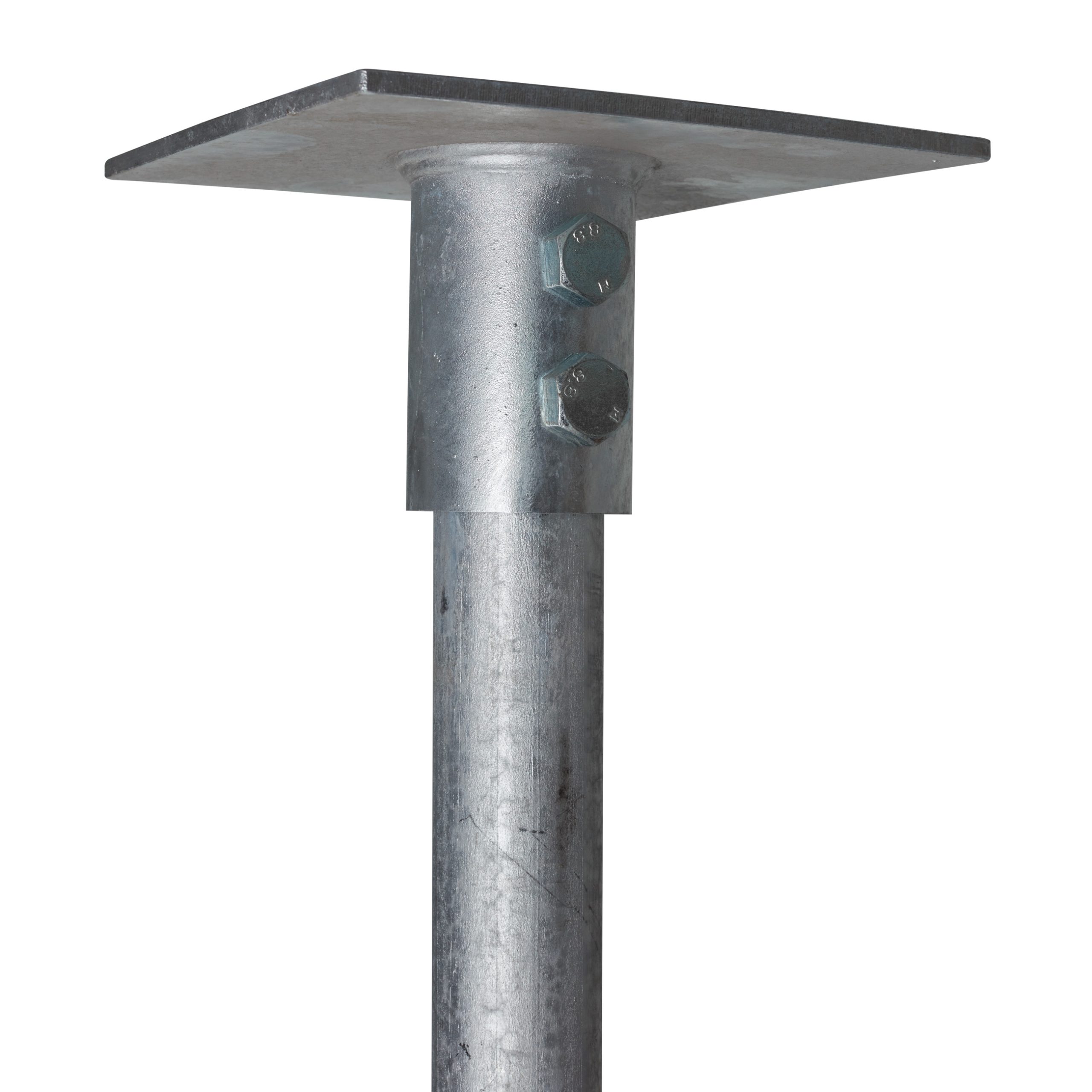

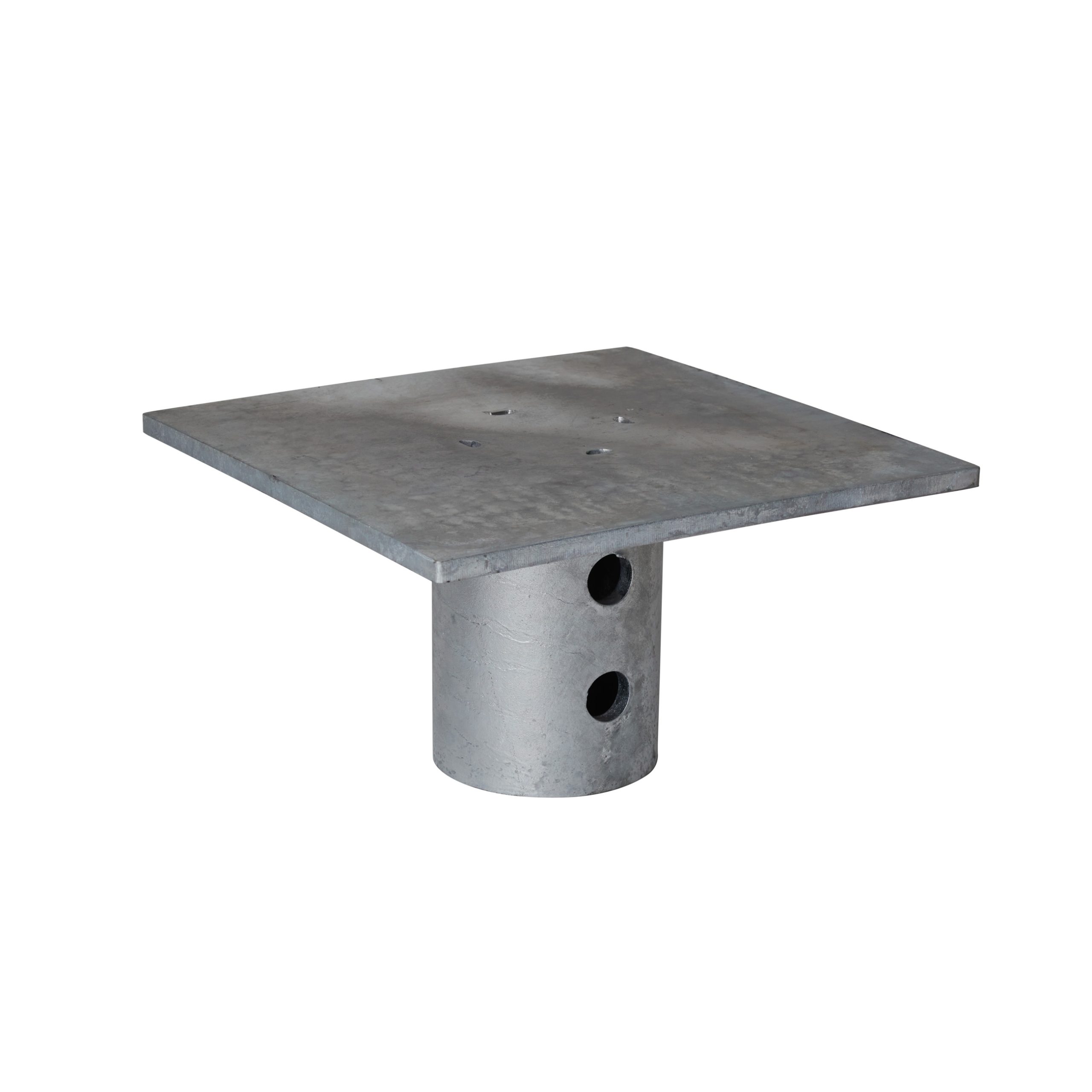

Pile Head Specifications
| Pile Size | Plate Size | Plate Thickness | Fixing | Coating Finish |
|---|---|---|---|---|
| 89R | 300mm | 10mm | Fixed | EN ISO 1461 – Hot-dip galvanising |
| 89R | 250mm x 250mm | 15mm | Adjustable | EN ISO 1461 – Hot-dip galvanising |
Manufacturing Standards
| Standard | Covers |
|---|---|
| EN 10025 | Structural steel specification |
| EN 10210 / EN 10219 | Structural hollow sections |
| ISO 3834 | Welding quality management |
| EN ISO 1461 | Hot-dip galvanising |
| EN 1090-1 | CE/UKCA conformity declaration |
| EN 1090-2 | Execution class EXC2 or EXC3 as applicable |
Key advantages for engineers and contractors
- No vibration
- High load achieve with smaller rigs and machines
- Reliable performance in weak and variable ground conditions
- Safe and practical for use on contaminated land
- Design life of up to 120 years
- Fully certified load data for every pile installed
- Not weather-dependent – installation possible in conditions that would delay a concrete pour
- Suitable for confined and restricted-access sites
- Can be installed at a range of angles to suit design requirements
