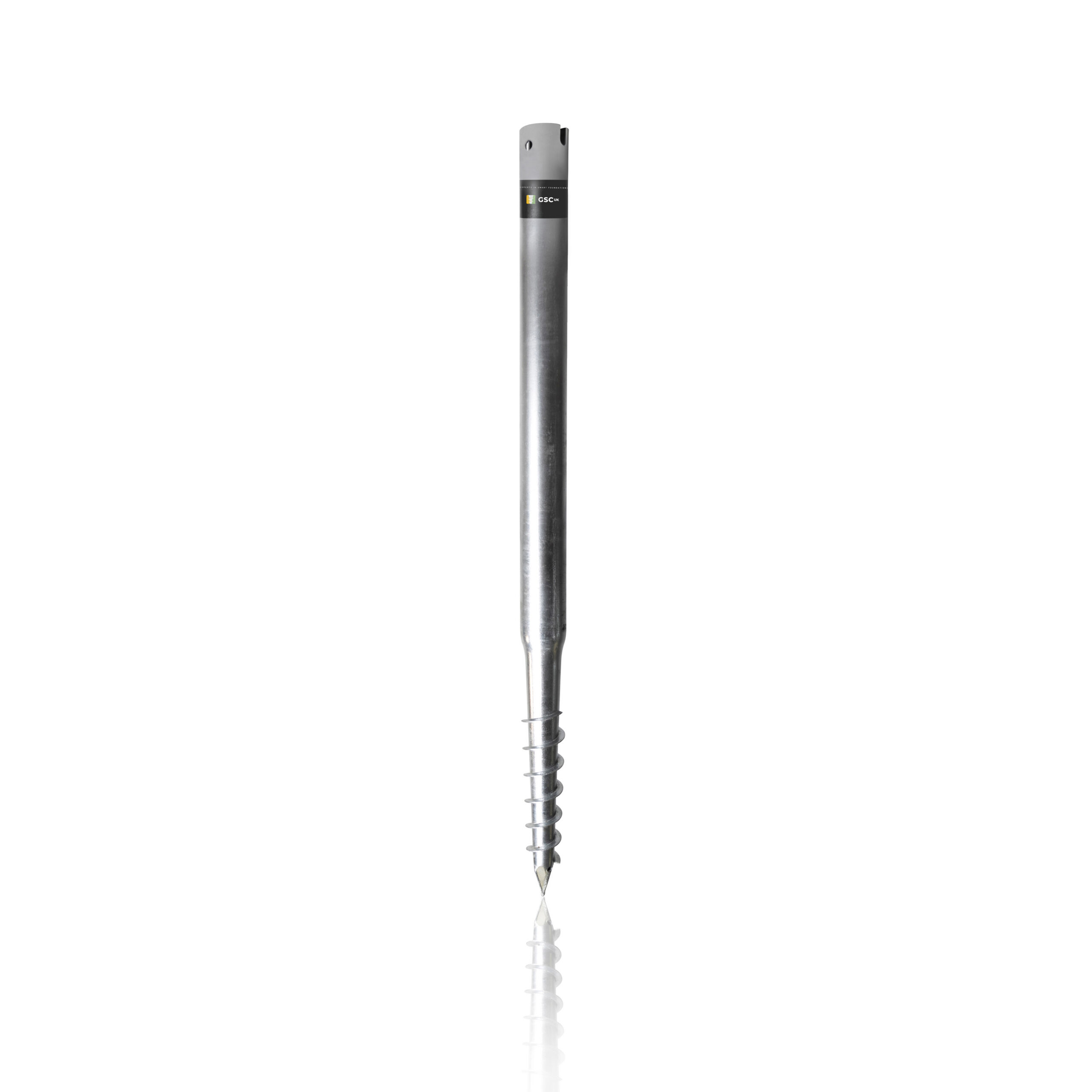

68mm x 1100mm Self Install Ground Screw

68mm x 1100mm Self Install Ground Screw

This product is not available to buy online.

If you would like more information on the product, or would like to purchase, please get in touch.

Enquire now
(1 customer review)
Product code: GS-68x1100

In stock

length

1100mm

install range

300mm

diameter

68mm

load capacity

950kg

material

Galvanised Steel

wall thickness

1.8mm

Discover our 1100mm self-install ground screw – a quick, eco-friendly solution compatible with all of our self installation bracket options. Perfect for creating stable foundations for garden structures, it easily handles slopes up to 300mm, ensuring a hassle-free installation process.

Key Highlights

  1. Perfect for a variety of domestic & commercial applications & supporting heavy loads
  2. Hassle-free installation with our manual or ratchet tool
  3. Hot Dip Galvanised Steel with BS EN 1461:2009 compliance
  4. CE approved with a 20-year product guarantee
  5. Compatible with all bracket systems

Load capabilities & recommended install range:

  • Maximum Compression Load Capability – 970kg (9.5kN)
  • Maximum Tension Load Capability – 530kg (5.2kN)
  • Maximum Horizontal Load Capability – 320kg (3.2kN)
  • Ground level – 300mm above ground level

Benefits of Ground Screws

  • Quick & Simple

    Easy to install yourself in a matter of minutes, enabling you to get your project out of the ground straight away without any waiting, any time of the year.

  • Less mess, less cost

    A quick and clean alternative to messy concrete, no digging, no waste, no costly skips. Save money on the total cost of installing foundations.

  • Designed to last

    Our ground screws are fully galvanised to protect against rusting. For added peace of mind, they are CE certified with our 20-year product guarantee and are BS EN 1461:2009 compliant.

  • Immediately load bearable

    Suitable for a wide range of structures, our ground screws are immediately load bearing, so as soon as they are installed you can start building.

  • Permanent or temporary structures

    Suitable for permanent or temporary structures and easily removable with no lasting pollutants left behind

  • Environmentally friendly

    Reduced CO2 from pouring concrete. Helps protect habitats and prevent damage to tree root systems

  • No Heavy Equipment

    Purchase your hand ratchet tool for quick and easy installation due to no heavy equipment required

  • Lightweight & Compact

    Using ground screws eliminates any access issues - Our ground screws, bracket systems and tools can all be carried by hand.

  • Reduced Disruption

    The DIY approach minimises disruptions to your property, as it often involves less noise, debris, and disturbance compared to traditional foundation construction.
