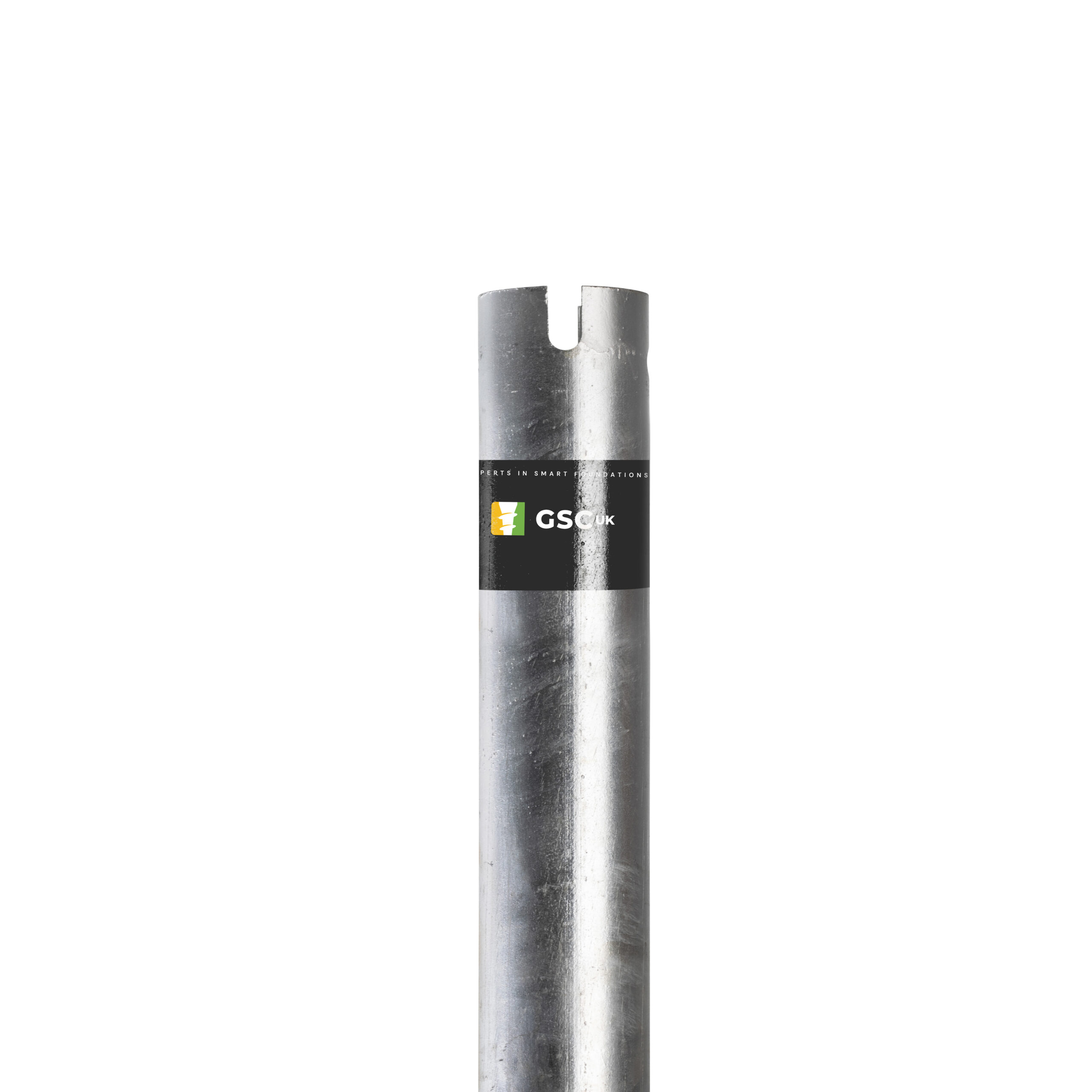

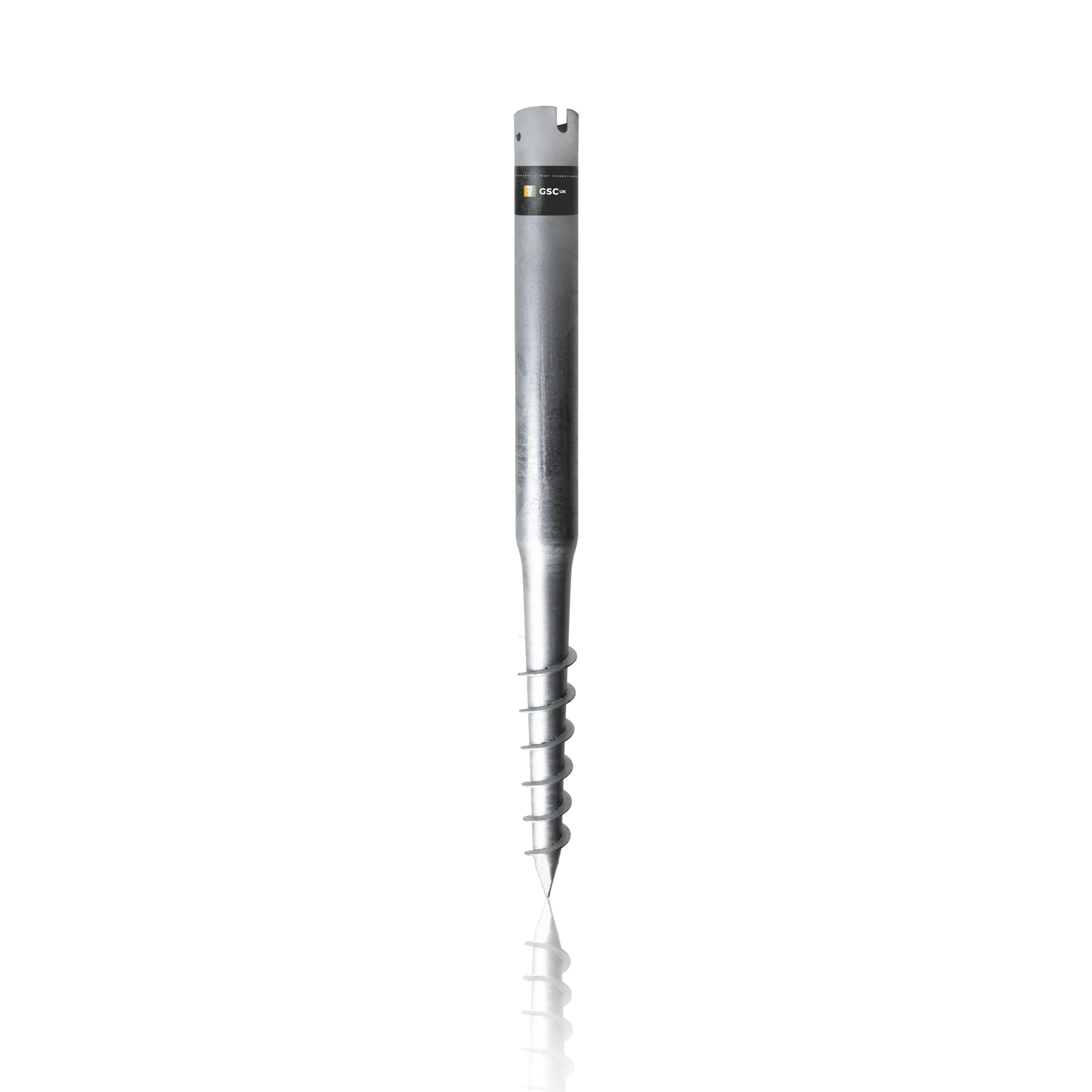

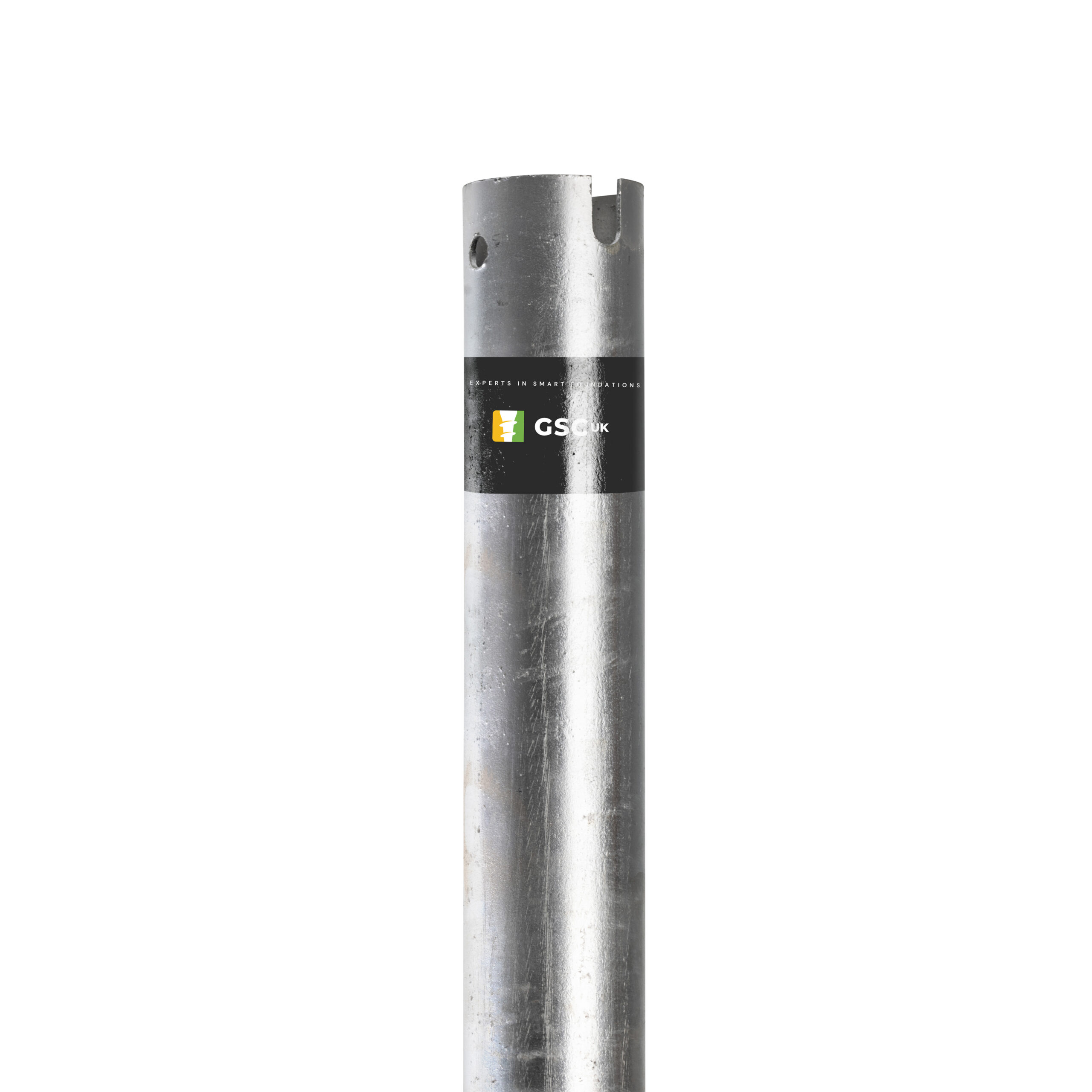

68mm x 850mm Self Install Ground Screw
£23.99 ex. VAT
In stock
length
850mm
install range
200mm
diameter
68mm
load capacity
630kg
material
Galvanised Steel
wall thickness
3.0mm
The 850mm self-install ground screw is quick and easy to install with minimal impact on the environment. This ground screw is compatible with our self installation bracket options and can be used to create a foundation for, shed bases, decking, garden rooms and summerhouses and can overcome a slope of up to 200mm.
Easy to install yourself in a matter of minutes, enabling you to get your project out of the ground straight away without any waiting, any time of the year.
A quick and clean alternative to messy concrete, no digging, no waste, no costly skips. Save money on the total cost of installing foundations.
Our ground screws are fully galvanised to protect against rusting. For added peace of mind, they are CE certified with our 20-year product guarantee and are BS EN 1461:2009 compliant.
Suitable for a wide range of structures, our ground screws are immediately load bearing, so as soon as they are installed you can start building.
Suitable for permanent or temporary structures and easily removable with no lasting pollutants left behind
Reduced CO2 from pouring concrete. Helps protect habitats and prevent damage to tree root systems
Purchase your hand ratchet tool for quick and easy installation due to no heavy equipment required
Using ground screws eliminates any access issues - Our ground screws, bracket systems and tools can all be carried by hand.
The DIY approach minimises disruptions to your property, as it often involves less noise, debris, and disturbance compared to traditional foundation construction.
S Cunliffe – June 27, 2024
I used The Ground Screw Centre to build the base for a garden office, as the garden was on a slope and I wanted to avoid concrete. I was very pleased, not only with the service from GSC but also the quality of these screws. They are well-built, and fairly easy to install (you might need the ratchet if doing a large number). It only took about 3 hours to install all 20 ground screws, but it took another hour or so to get them all level across the timber base. Once the frame was mounted all the ground screws were sharing the weight.
G Goose – June 27, 2024
These Ground screws were super easy to install myself. I recommend the ratcheted installation tool. And doing them after some rain when the ground is softer. Much easier and more pleasant than concrete. Fab customer service too!
Sarah Cross – June 27, 2024
Used the online calculator to work out how many screws I needed for my decking project and then ordered them online. Delivery was quick and the screws themselves are really good quality. Will definitely use them again.”
Henry (verified owner) – November 8, 2024
I am DIYER making a garden office on sloping clay soil. I used 12 ground screws (850mm) with the manual ratchet. The ground screws have helped create a very sturdy subfloor for my structure. Super impressed with the product. GSC staff were super helpful and talked through my needs on the phone. Will go back there for the next project!
Your email address will not be published. Required fields are marked *
Your review *
Name *
Email *
Save my name, email, and website in this browser for the next time I comment.
Are ground screws easy to install?
Yes, ground screws are very simple to install. You can start turning it into the ground by hand and then use the hand tool once it becomes too difficult to turn. For each ¼ turn of the handle, the ground screw will move 10mm further into the ground.
How do ground screws work and are they stable?
Ground screws use the standard pile principles which have been reliably applied since the Ancient Greeks! The process of installing the ground screws will compact the surrounding local soil and solidify the substructure. Other forces such as skin friction, clamping pressure and thread interlocking will all contribute to its load bearing capacity. This method ensures your foundation requires no digging, no mess, no concrete and the install process 75% faster!
Can I use self-install ground screws for my project?
Our ground screws are compatible a variety of applications including decking, sheds, garden offices buildings, signage and other structures. Our self-install ground screws range from 550mm to 1100mm in length with a vast range of connecting brackets. Check out our case study page for inspiration and similar projects. If you are unsure whether or not ground screw are suitable then please give us a call so we can advise further.
How many ground screws do I need?
Choosing the right number of ground screws is important to ensuring you have the right level of support for your building. Use our Ground Screw Calculator which will consider your project details and will provide recommendation. If you have a specialist project or more in depth plans they please give us a call or email to discuss further.
Are ground screws suitable for all ground types?
You can use ground screws in most ground types but please contact us if you are unsure. For sloping ground, you can use our self-install range to overcome slopes up to 300mm. If you have a greater slope to overcome, we can offer a professional installation service with our commercial range.
